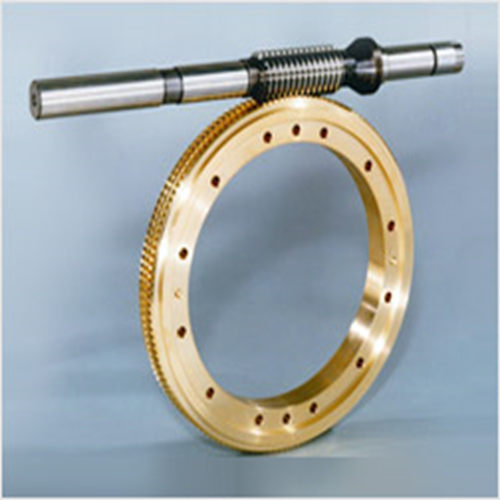

MHI HASEG Worm Gear Set SRMR Series

The MHI HASEG Worm Gear Set SRMR Series is a premium, modular worm-and-worm-wheel assembly designed for OEMs and system integrators who demand flexible, high-precision gearing solutions. Crafted with MHI HASEG’s proprietary Niemann concave-convex tooth profile, the MHI HASEG Worm Gear Set SRMR Series delivers superior load capacity, quiet operation, and reliable self-locking performance in compact assemblies.

Key Features

1. Modular Design

   The MHI HASEG Worm Gear Set SRMR Series provides matched worm shafts and bronze worm wheels as a kit, allowing engineers to integrate the gearing into custom housings and achieve optimal center-distance configurations.



2. Advanced Niemann Tooth Profile

   With the MHI HASEG Worm Gear Set SRMR Series, each gear combination features a precision concave-convex profile that increases surface contact, enhances oil film retention, and minimizes Hertzian stress for extended life.



3. High Load & Torque Capacity

   The MHI HASEG Worm Gear Set SRMR Series uses hardened alloy-steel worms and high-strength bronze wheels, supporting torque ratings up to 20 000 Nm (size-dependent) and ensuring robust performance under heavy radial and axial loads.



4. Self-Locking Safety

   Thanks to its low lead-angle configuration, the MHI HASEG Worm Gear Set SRMR Series inherently resists back-driving, providing built-in load-holding capability without additional braking components.



5. Quiet, Smooth Operation

   Gear pairs in the MHI HASEG Worm Gear Set SRMR Series are finish-machined to tight tolerances, delivering whisper-quiet meshing and minimal vibration even at high input speeds up to 1 800 min⁻¹.



6. OEM Customization

   Available in center distances from 65 mm to 500 mm and standard reduction ratios from 5:1 to 50:1, the MHI HASEG Worm Gear Set SRMR Series can be tailored to meet specific design requirements for speed, torque, and footprint.



Typical Specifications

Applications

• Custom Gearboxes: Engineers use the MHI HASEG Worm Gear Set SRMR Series to build tailored speeds and torque gear units.

• Automation & Robotics: Integrates seamlessly into actuator and indexing mechanisms requiring precise, backlash-minimized motion.

• Lifting & Positioning: Self-locking safety of the MHI HASEG Worm Gear Set SRMR Series ensures secure holding in hoists and jigs.

• Rotary Actuators: Stable, low-noise operation for valves, turntables, and rotary indexing tables.

• Machine Tools: High-durability gear components withstand intermittent shock loads and continuous duty cycles.



Why Choose the SRMR Series?

• Design Flexibility: The MHI HASEG Worm Gear Set SRMR Series allows full customization of housing and mounting to match your machine’s footprint.

• Proven Reliability: Niemann tooth profile and premium materials deliver consistent performance and long service life.

• Quiet & Efficient: High-precision finishing in the MHI HASEG Worm Gear Set SRMR Series ensures whisper-quiet engagement and up to 90 % efficiency.

• Safety-Built: Integrated self-locking eliminates back-drive risk, reducing the need for external brakes.

• Comprehensive Support: Melink Automation provides detailed selection assistance, CAD models, and after-sales service for the MHI HASEG Worm Gear Set SRMR Series.



For detailed dimensions, torque curves, and OEM design support, contact Melink Automation, your trusted partner for the MHI HASEG Worm Gear Set SRMR Series.

MHI HASEG Worm Gear Set: SRMR

MHI HASEG Worm Gear Set: SRMR Series Size：65，80

MHI HASEG Worm Gear Set: SRMR Series Size：100~250

MHI HASEG Worm Gear Set: SRMR Series Size：280~500
