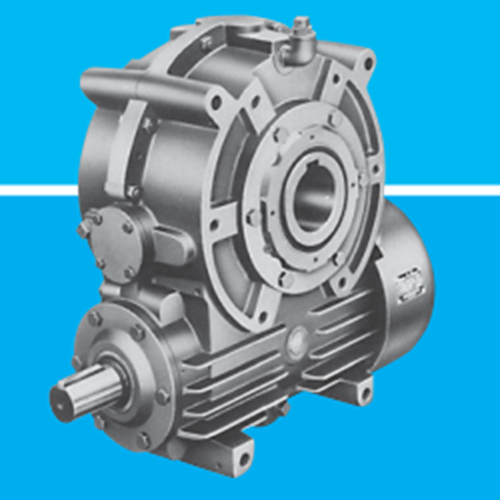

MHI HASEG Worm Gear Reducer SEOH Series

The MHI HASEG Worm Gear Reducer SEOH Series is a high-performance, two-stage horizontal-shaft reducer designed for demanding applications requiring high reduction ratios, superior durability, and consistent torque delivery. With its advanced Niemann tooth profile and precision-crafted gearing, the SEOH Series offers compact power transmission with excellent efficiency, reliability, and self-locking capability.

Key Features

1. Two-Stage Horizontal Shaft Design

   The SEOH Series features dual worm gear stages in a horizontal configuration, allowing high reduction ratios (up to 250:1) within a compact footprint. Ideal for applications where horizontal layout is preferred and space is limited.



2. High Reduction Ratios with Niemann Tooth Profile

   MHI HASEG’s proprietary concave-convex Niemann tooth profile ensures superior surface contact, improved oil film retention, and uniform load distribution. This results in smooth operation, reduced wear, and increased transmission efficiency.



3. Robust Load Handling

   The SEOH Series is engineered with hardened alloy steel worm shafts and high-strength bronze worm wheels, delivering strong resistance to both radial and axial loads, and maintaining high performance under continuous operation.



4. Self-Locking Mechanism

   With low lead angles in both stages, the SEOH Series naturally resists back-driving, providing built-in safety and stability in lifting or braking-critical systems.



5. Reliable Lubrication & Maintenance

   Splash lubrication using Klüber “SYNTHESO HT” or “SYNTH GH6” ensures continuous gear protection. Separate oil chambers and level gauges for each stage support reliable long-term operation. Grease nipples allow for simple bearing maintenance without disassembly.



6. Precision Housing & Easy Installation

   The housing is machined to JIS B1301-1976 standards, ensuring proper shaft alignment and minimal backlash. Designed with installation-friendly mounting surfaces and accessible service points.



Typical Specifications

Applications

• Conveyors & Packaging Lines: High-torque output with reliable speed control.

• Mixers & Agitators: Self-locking function for stable torque handling.

• Lifting & Hoisting Equipment: Built-in safety against back-driving.

• Industrial Machinery: Compact and quiet solution for high-reduction needs.

• Textile & Food Processing: Precise, efficient, and clean operation.



Why Choose the SEOH Series?

• Space-Saving Horizontal Configuration: Dual-stage high reduction in a compact body.

• Durability & Efficiency: Niemann gears and premium materials for long-lasting performance.

• Self-Locking Safety: Maintains load position without brakes.

• Ease of Maintenance: Straightforward lubrication and inspection features.

• Global Support: Backed by Melink Automation and MHI HASEG’s engineering excellence.



For product selection support, torque charts, and dimensional drawings, contact Melink Automation, your distributor of MHI HASEG Worm Gear Reducers.

MHI HASEG Worm Gear Reducer SEOH  Series Size：100~250（Output Shaft Arrangement：Left）

MHI HASEG Worm Gear Reducer SEOH  Series Size：100~250（Output Shaft Arrangement：Right）
