MHI HASEG Worm Gear Reducer SEHV Series

The MHI HASEG Worm Gear Reducer SEHV Series is a high-performance, two-stage vertical-shaft hollow-output worm gear reducer designed for applications that demand compact installation, high reduction ratios, and safe, reliable torque transmission. Built with MHI HASEG’s precision Niemann tooth profile and robust materials, the SEHV Series ensures ultra-smooth operation, quiet performance, and exceptional self-locking capability—making it ideal for lifting equipment, rotary systems, and vertical automation drives.

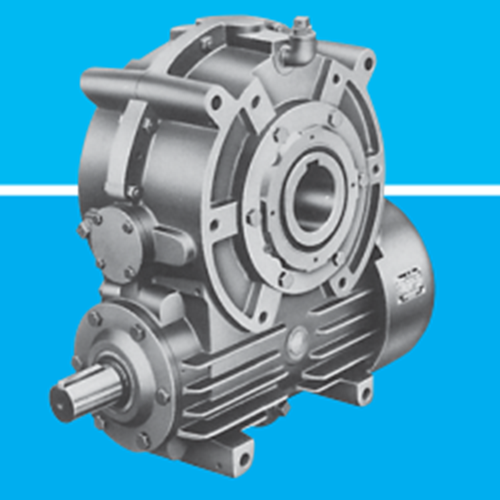

MHI HASEG Worm Gear Unit-2.png



Key Features

  1. Two-Stage Vertical Shaft & Hollow Output Design

    The SEHV Series features a vertical input shaft and hollow output configuration, enabling direct shaft mounting and saving space in vertically aligned machinery. The two-stage worm gear system delivers high reduction ratios within a compact, vertically oriented housing.

  2. Niemann Tooth Profile for Enhanced Efficiency

    MHI HASEG’s concave-convex Niemann gear flanks increase contact area and oil retention, reducing friction and wear while improving torque transfer and overall transmission efficiency.

  3. Self-Locking Mechanism for Safety

    With low lead-angle worm gears in both stages, the SEHV Series offers inherent back-drive prevention. This built-in self-locking capability ensures stable positioning and eliminates the need for external braking systems.

  4. Quiet & Vibration-Free Operation

    Precision machining and optimized gear geometry ensure whisper-quiet performance and minimal vibration—ideal for environments requiring stable, smooth motion such as food, packaging, or medical equipment.

  5. Robust & Durable Construction

    Made from hardened alloy steel worm shafts and high-strength bronze worm wheels, the SEHV Series withstands continuous use under demanding conditions. Cast iron housing provides long-term structural reliability.

  6. Easy Maintenance with Splash Lubrication

    Utilizing Klüber SYNTHESO HT or SYNTH GH6 oil, the splash lubrication system offers excellent protection for gears. The design includes accessible filler, drain ports, oil-level indicators, and grease nipples for efficient servicing.

  7. Standardized Dimensions (JIS Compliant)

    Shaft fits, housing tolerances, and mounting configurations conform to JIS B1301-1976, ensuring compatibility with standard equipment and ease of replacement or retrofitting.

Typical Specifications

Specification

 SEHV Series
Shaft Orientation Vertical (input) / Hollow output
Center Distance (mm) 100, 125, 160, 200, 225, 250, 280, 320, 360, 400, 450, 500
Reduction Ratios (iₙ) 63, 80, 100, 125, 160, 200, 250
Rated Output Torque (T₂N, Nm) Size-dependent (consult catalog)
Max Input Speed (n₁, min⁻¹) Up to 1,800
Efficiency (η) Up to 80–85% (two-stage)
Lubrication Splash lubrication (Klüber oil)
Housing Material Cast iron
Operating Temperature –10 °C to +40 °C
Protection Class IP54 (standard)


Applications

  • Lifting Equipment & Hoists: Safe vertical torque transmission with self-locking.

  • Rotary Tables & Indexing Units: High-precision motion with high reduction.

  • Vertical Conveyors & Elevators: Space-saving vertical drive with stable load holding.

  • Automation Machinery: Compact, reliable vertical torque control.

  • Food & Packaging Equipment: Quiet, hygienic operation with minimal maintenance.

Why Choose the SEHV Series?



  • Compact, High-Ratio Vertical Drive: Up to 250:1 reduction in a vertical footprint.

  • Built-In Safety: Self-locking mechanism prevents reverse rotation.

  • Smooth & Quiet Operation: Niemann profile ensures efficient, low-vibration performance.

  • Easy Installation & Service: JIS-compliant dimensions and accessible maintenance points.

  • Trusted Engineering: Backed by MHI HASEG precision manufacturing and Melink Automation support.

For technical data, torque charts, or assistance with product selection, contact Melink Automation, your trusted distributor of the MHI HASEG Worm Gear Reducer SEHV Series.
