MHI HASEG Worm Gear Reducer SHVW Series

The MHI HASEG Worm Gear Reducer SHVW Series is a robust, single‑stage worm gear unit featuring a vertical input shaft and solid horizontal output shaft. Engineered by MHI HASEG, the SHVW Series provides efficient torque transmission, inherent self‑locking safety, and whisper‑quiet operation—ideal for vertical‑drive applications where space is limited and reliability is paramount.

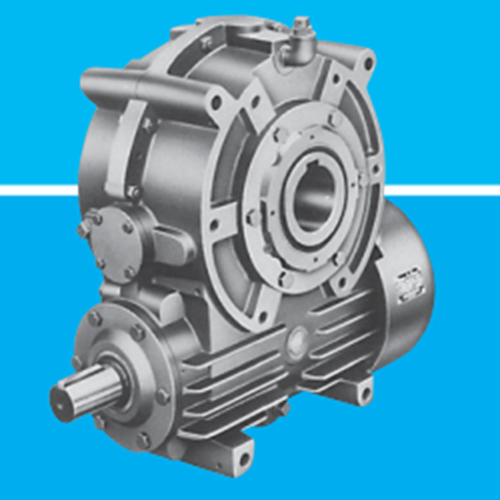

MHI HASEG Worm Gear Unit-2.png



Key Features



  1. Vertical Input, Solid Output Configuration

    The MHI HASEG Worm Gear Reducer SHVW Series combines a vertical drive entry with a solid horizontal output shaft for direct coupling to machinery, saving space and simplifying installation.

  2. Advanced Niemann Tooth Profile

    Utilizing the proprietary concave‑convex gear geometry, the SHVW Series ensures uniform load distribution, superior oil film retention, and reduced surface stress for extended service life.

  3. High Efficiency & Low Noise

    Precision machining and optimized tooth engagement deliver up to 90 % efficiency with minimal backlash, while the MHI HASEG Worm Gear Reducer SHVW Series runs smoothly at high input speeds with remarkably low vibration and noise.

  4. Built‑In Self‑Locking Safety

    The low lead‑angle worm design of the SHVW Series prevents back‑driving, providing reliable mechanical load holding without external brakes—critical for lifts, hoists, and stop‑and‑hold applications.

  5. Durable Construction

    Hardened alloy steel for the worm shaft and high‑strength bronze for the worm wheel ensure the MHI HASEG Worm Gear Reducer SHVW Series withstands heavy radial and axial loads under continuous operation.

  6. Easy Maintenance

    Splash lubrication with Klüber SYNTHESO HT or SYNTH GH6 oils, accessible grease nipples, oil‑level sight glasses, and filler/drain ports make routine servicing of the SHVW Series straightforward and low‑effort.

Typical Specifications

Specification

 SHVW Series
Shaft Orientation Vertical input / Solid horizontal output
Center Distance (mm) 65, 80, 100, 100, 125, 160, 200, 225, 250, 280, 320, 360, 400, 450, 500
Reduction Ratios (iₙ) 5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50
Rated Output Torque (T₂N, Nm) 180–20 000 Nm (size‑dependent)
Max Input Speed (n₁, min⁻¹) Up to 1 800
Efficiency (η) Up to 90 %
Lubrication Splash (standard); forced‑lubrication optional
Housing Material Cast iron
Operating Temperature –10 °C to +40 °C
Protection Class IP54 (standard)


Applications



  • Vertical Lifting & Hoisting: Built‑in self‑locking ensures secure load holding.

  • Rotary Indexers & Tables: Solid output shaft for direct motion control.

  • Agitators & Mixers: Efficient top‑down torque delivery in compact spaces.

  • Packaging & Food Machinery: Quiet, low‑vibration drives suitable for sensitive environments.

  • Automation Equipment: Space‑efficient vertical reducers for robotics and assembly lines.

Why Choose the SHVW Series?

  • Space‑Saving Design: The MHI HASEG Worm Gear Reducer SHVW Series fits into tight vertical installations without sacrificing performance.

  • Exceptional Reliability: Precision‑matched gears and premium materials guarantee long service life under heavy loads.

  • Safety‑Built: Self‑locking worm gearing eliminates the need for external braking in critical applications.

  • Low Maintenance: Simplified lubrication and inspection features reduce downtime and operating costs.

  • Global Support: Backed by MHI HASEG’s engineering expertise and local Melink Automation service.

For detailed torque curves, dimensional drawings, and selection assistance for the MHI HASEG Worm Gear Reducer SHVW Series, please contact your Melink Automation representative.





MHI HASEG Worm Gear Reducer SHVW  Series Size：65・80・99（Output Shaft Arrangement：Left）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Left 5 SHVW65LO-5 SHVW80LO-5 SHVW99LO-5
6.3 SHVW65LO-6.3 SHVW80LO-6.3 SHVW99LO-6.3
8 SHVW65LO-8 SHVW80LO-8 SHVW99LO-8
10 SHVW65LO-10 SHVW80LO-10 SHVW99LO-10
12.5 SHVW65LO-12.5 SHVW80LO-12.5 SHVW99LO-12.5
16 SHVW65LO-16 SHVW80LO-16 SHVW99LO-16
20 SHVW65LO-20 SHVW80LO-20 SHVW99LO-20
25 SHVW65LO-25 SHVW80LO-25 SHVW99LO-25
31.5 SHVW65LO-31.5 SHVW80LO-31.5 SHVW99LO-31.5
40 SHVW65LO-40 SHVW80LO-40 SHVW99LO-40
50 SHVW65LO-50 SHVW80LO-50 SHVW99LO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Left 5 SHVW65LU-5 SHVW80LU-5 SHVW99LU-5
6.3 SHVW65LU-6.3 SHVW80LU-6.3 SHVW99LU-6.3
8 SHVW65LU-8 SHVW80LU-8 SHVW99LU-8
10 SHVW65LU-10 SHVW80LU-10 SHVW99LU-10
12.5 SHVW65LU-12.5 SHVW80LU-12.5 SHVW99LU-12.5
16 SHVW65LU-16 SHVW80LU-16 SHVW99LU-16
20 SHVW65LU-20 SHVW80LU-20 SHVW99LU-20
25 SHVW65LU-25 SHVW80LU-25 SHVW99LU-25
31.5 SHVW65LU-31.5 SHVW80LU-31.5 SHVW99LU-31.5
40 SHVW65LU-40 SHVW80LU-40 SHVW99LU-40
50 SHVW65LU-50 SHVW80LU-50 SHVW99LU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Left 5 SHVW65LB-5 SHVW80LB-5 SHVW99LB-5
6.3 SHVW65LB-6.3 SHVW80LB-6.3 SHVW99LB-6.3
8 SHVW65LB-8 SHVW80LB-8 SHVW99LB-8
10 SHVW65LB-10 SHVW80LB-10 SHVW99LB-10
12.5 SHVW65LB-12.5 SHVW80LB-12.5 SHVW99LB-12.5
16 SHVW65LB-16 SHVW80LB-16 SHVW99LB-16
20 SHVW65LB-20 SHVW80LB-20 SHVW99LB-20
25 SHVW65LB-25 SHVW80LB-25 SHVW99LB-25
31.5 SHVW65LB-31.5 SHVW80LB-31.5 SHVW99LB-31.5
40 SHVW65LB-40 SHVW80LB-40 SHVW99LB-40
50 SHVW65LB-50 SHVW80LB-50 SHVW99LB-50



MHI HASEG Worm Gear Reducer SHVW  Series Size：65・80・99（Output Shaft Arrangement：Right）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Right 5 SHVW65RO-5 SHVW80RO-5 SHVW99RO-5
6.3 SHVW65RO-6.3 SHVW80RO-6.3 SHVW99RO-6.3
8 SHVW65RO-8 SHVW80RO-8 SHVW99RO-8
10 SHVW65RO-10 SHVW80RO-10 SHVW99RO-10
12.5 SHVW65RO-12.5 SHVW80RO-12.5 SHVW99RO-12.5
16 SHVW65RO-16 SHVW80RO-16 SHVW99RO-16
20 SHVW65RO-20 SHVW80RO-20 SHVW99RO-20
25 SHVW65RO-25 SHVW80RO-25 SHVW99RO-25
31.5 SHVW65RO-31.5 SHVW80RO-31.5 SHVW99RO-31.5
40 SHVW65RO-40 SHVW80RO-40 SHVW99RO-40
50 SHVW65RO-50 SHVW80RO-50 SHVW99RO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Right 5 SHVW65RU-5 SHVW80RU-5 SHVW99RU-5
6.3 SHVW65RU-6.3 SHVW80RU-6.3 SHVW99RU-6.3
8 SHVW65RU-8 SHVW80RU-8 SHVW99RU-8
10 SHVW65RU-10 SHVW80RU-10 SHVW99RU-10
12.5 SHVW65RU-12.5 SHVW80RU-12.5 SHVW99RU-12.5
16 SHVW65RU-16 SHVW80RU-16 SHVW99RU-16
20 SHVW65RU-20 SHVW80RU-20 SHVW99RU-20
25 SHVW65RU-25 SHVW80RU-25 SHVW99RU-25
31.5 SHVW65RU-31.5 SHVW80RU-31.5 SHVW99RU-31.5
40 SHVW65RU-40 SHVW80RU-40 SHVW99RU-40
50 SHVW65RU-50 SHVW80RU-50 SHVW99RU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
65 80 99
Output Shaft Arrangement：Right 5 SHVW65RB-5 SHVW80RB-5 SHVW99RB-5
6.3 SHVW65RB-6.3 SHVW80RB-6.3 SHVW99RB-6.3
8 SHVW65RB-8 SHVW80RB-8 SHVW99RB-8
10 SHVW65RB-10 SHVW80RB-10 SHVW99RB-10
12.5 SHVW65RB-12.5 SHVW80RB-12.5 SHVW99RB-12.5
16 SHVW65RB-16 SHVW80RB-16 SHVW99RB-16
20 SHVW65RB-20 SHVW80RB-20 SHVW99RB-20
25 SHVW65RB-25 SHVW80RB-25 SHVW99RB-25
31.5 SHVW65RB-31.5 SHVW80RB-31.5 SHVW99RB-31.5
40 SHVW65RB-40 SHVW80RB-40 SHVW99RB-40
50 SHVW65RB-50 SHVW80RB-50 SHVW99RB-50





MHI HASEG Worm Gear Reducer SHVW  Series Size：100~250（Output Shaft Arrangement：Left）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Left 5 SHVW100LO-5 SHVW125LO-5 SHVW160LO-5 SHVW200LO-5 SHVW225LO-5 SHVW250LO-5
6.3 SHVW100LO-6.3 SHVW125LO-6.3 SHVW160LO-6.3 SHVW200LO-6.3 SHVW225LO-6.3 SHVW250LO-6.3
8 SHVW100LO-8 SHVW125LO-8 SHVW160LO-8 SHVW200LO-8 SHVW225LO-8 SHVW250LO-8
10 SHVW100LO-10 SHVW125LO-10 SHVW160LO-10 SHVW200LO-10 SHVW225LO-10 SHVW250LO-10
12.5 SHVW100LO-12.5 SHVW125LO-12.5 SHVW160LO-12.5 SHVW200LO-12.5 SHVW225LO-12.5 SHVW250LO-12.5
16 SHVW100LO-16 SHVW125LO-16 SHVW160LO-16 SHVW200LO-16 SHVW225LO-16 SHVW250LO-16
20 SHVW100LO-20 SHVW125LO-20 SHVW160LO-20 SHVW200LO-20 SHVW225LO-20 SHVW250LO-20
25 SHVW100LO-25 SHVW125LO-25 SHVW160LO-25 SHVW200LO-25 SHVW225LO-25 SHVW250LO-25
31.5 SHVW100LO-31.5 SHVW125LO-31.5 SHVW160LO-31.5 SHVW200LO-31.5 SHVW225LO-31.5 SHVW250LO-31.5
40 SHVW100LO-40 SHVW125LO-40 SHVW160LO-40 SHVW200LO-40 SHVW225LO-40 SHVW250LO-40
50 SHVW100LO-50 SHVW125LO-50 SHVW160LO-50 SHVW200LO-50 SHVW225LO-50 SHVW250LO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Left 5 SHVW100LU-5 SHVW125LU-5 SHVW160LU-5 SHVW200LU-5 SHVW225LU-5 SHVW250LU-5
6.3 SHVW100LU-6.3 SHVW125LU-6.3 SHVW160LU-6.3 SHVW200LU-6.3 SHVW225LU-6.3 SHVW250LU-6.3
8 SHVW100LU-8 SHVW125LU-8 SHVW160LU-8 SHVW200LU-8 SHVW225LU-8 SHVW250LU-8
10 SHVW100LU-10 SHVW125LU-10 SHVW160LU-10 SHVW200LU-10 SHVW225LU-10 SHVW250LU-10
12.5 SHVW100LU-12.5 SHVW125LU-12.5 SHVW160LU-12.5 SHVW200LU-12.5 SHVW225LU-12.5 SHVW250LU-12.5
16 SHVW100LU-16 SHVW125LU-16 SHVW160LU-16 SHVW200LU-16 SHVW225LU-16 SHVW250LU-16
20 SHVW100LU-20 SHVW125LU-20 SHVW160LU-20 SHVW200LU-20 SHVW225LU-20 SHVW250LU-20
25 SHVW100LU-25 SHVW125LU-25 SHVW160LU-25 SHVW200LU-25 SHVW225LU-25 SHVW250LU-25
31.5 SHVW100LU-31.5 SHVW125LU-31.5 SHVW160LU-31.5 SHVW200LU-31.5 SHVW225LU-31.5 SHVW250LU-31.5
40 SHVW100LU-40 SHVW125LU-40 SHVW160LU-40 SHVW200LU-40 SHVW225LU-40 SHVW250LU-40
50 SHVW100LU-50 SHVW125LU-50 SHVW160LU-50 SHVW200LU-50 SHVW225LU-50 SHVW250LU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Left 5 SHVW100LB-5 SHVW125LB-5 SHVW160LB-5 SHVW200LB-5 SHVW225LB-5 SHVW250LB-5
6.3 SHVW100LB-6.3 SHVW125LB-6.3 SHVW160LB-6.3 SHVW200LB-6.3 SHVW225LB-6.3 SHVW250LB-6.3
8 SHVW100LB-8 SHVW125LB-8 SHVW160LB-8 SHVW200LB-8 SHVW225LB-8 SHVW250LB-8
10 SHVW100LB-10 SHVW125LB-10 SHVW160LB-10 SHVW200LB-10 SHVW225LB-10 SHVW250LB-10
12.5 SHVW100LB-12.5 SHVW125LB-12.5 SHVW160LB-12.5 SHVW200LB-12.5 SHVW225LB-12.5 SHVW250LB-12.5
16 SHVW100LB-16 SHVW125LB-16 SHVW160LB-16 SHVW200LB-16 SHVW225LB-16 SHVW250LB-16
20 SHVW100LB-20 SHVW125LB-20 SHVW160LB-20 SHVW200LB-20 SHVW225LB-20 SHVW250LB-20
25 SHVW100LB-25 SHVW125LB-25 SHVW160LB-25 SHVW200LB-25 SHVW225LB-25 SHVW250LB-25
31.5 SHVW100LB-31.5 SHVW125LB-31.5 SHVW160LB-31.5 SHVW200LB-31.5 SHVW225LB-31.5 SHVW250LB-31.5
40 SHVW100LB-40 SHVW125LB-40 SHVW160LB-40 SHVW200LB-40 SHVW225LB-40 SHVW250LB-40
50 SHVW100LB-50 SHVW125LB-50 SHVW160LB-50 SHVW200LB-50 SHVW225LB-50 SHVW250LB-50



MHI HASEG Worm Gear Reducer SHVW  Series Size：100~250（Output Shaft Arrangement：Right）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Right 5 SHVW100RO-5 SHVW125RO-5 SHVW160RO-5 SHVW200RO-5 SHVW225RO-5 SHVW250RO-5
6.3 SHVW100RO-6.3 SHVW125RO-6.3 SHVW160RO-6.3 SHVW200RO-6.3 SHVW225RO-6.3 SHVW250RO-6.3
8 SHVW100RO-8 SHVW125RO-8 SHVW160RO-8 SHVW200RO-8 SHVW225RO-8 SHVW250RO-8
10 SHVW100RO-10 SHVW125RO-10 SHVW160RO-10 SHVW200RO-10 SHVW225RO-10 SHVW250RO-10
12.5 SHVW100RO-12.5 SHVW125RO-12.5 SHVW160RO-12.5 SHVW200RO-12.5 SHVW225RO-12.5 SHVW250RO-12.5
16 SHVW100RO-16 SHVW125RO-16 SHVW160RO-16 SHVW200RO-16 SHVW225RO-16 SHVW250RO-16
20 SHVW100RO-20 SHVW125RO-20 SHVW160RO-20 SHVW200RO-20 SHVW225RO-20 SHVW250RO-20
25 SHVW100RO-25 SHVW125RO-25 SHVW160RO-25 SHVW200RO-25 SHVW225RO-25 SHVW250RO-25
31.5 SHVW100RO-31.5 SHVW125RO-31.5 SHVW160RO-31.5 SHVW200RO-31.5 SHVW225RO-31.5 SHVW250RO-31.5
40 SHVW100RO-40 SHVW125RO-40 SHVW160RO-40 SHVW200RO-40 SHVW225RO-40 SHVW250RO-40
50 SHVW100RO-50 SHVW125RO-50 SHVW160RO-50 SHVW200RO-50 SHVW225RO-50 SHVW250RO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Right 5 SHVW100RU-5 SHVW125RU-5 SHVW160RU-5 SHVW200RU-5 SHVW225RU-5 SHVW250RU-5
6.3 SHVW100RU-6.3 SHVW125RU-6.3 SHVW160RU-6.3 SHVW200RU-6.3 SHVW225RU-6.3 SHVW250RU-6.3
8 SHVW100RU-8 SHVW125RU-8 SHVW160RU-8 SHVW200RU-8 SHVW225RU-8 SHVW250RU-8
10 SHVW100RU-10 SHVW125RU-10 SHVW160RU-10 SHVW200RU-10 SHVW225RU-10 SHVW250RU-10
12.5 SHVW100RU-12.5 SHVW125RU-12.5 SHVW160RU-12.5 SHVW200RU-12.5 SHVW225RU-12.5 SHVW250RU-12.5
16 SHVW100RU-16 SHVW125RU-16 SHVW160RU-16 SHVW200RU-16 SHVW225RU-16 SHVW250RU-16
20 SHVW100RU-20 SHVW125RU-20 SHVW160RU-20 SHVW200RU-20 SHVW225RU-20 SHVW250RU-20
25 SHVW100RU-25 SHVW125RU-25 SHVW160RU-25 SHVW200RU-25 SHVW225RU-25 SHVW250RU-25
31.5 SHVW100RU-31.5 SHVW125RU-31.5 SHVW160RU-31.5 SHVW200RU-31.5 SHVW225RU-31.5 SHVW250RU-31.5
40 SHVW100RU-40 SHVW125RU-40 SHVW160RU-40 SHVW200RU-40 SHVW225RU-40 SHVW250RU-40
50 SHVW100RU-50 SHVW125RU-50 SHVW160RU-50 SHVW200RU-50 SHVW225RU-50 SHVW250RU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
100 125 160 200 225 250
Output Shaft Arrangement：Right 5 SHVW100RB-5 SHVW125RB-5 SHVW160RB-5 SHVW200RB-5 SHVW225RB-5 SHVW250RB-5
6.3 SHVW100RB-6.3 SHVW125RB-6.3 SHVW160RB-6.3 SHVW200RB-6.3 SHVW225RB-6.3 SHVW250RB-6.3
8 SHVW100RB-8 SHVW125RB-8 SHVW160RB-8 SHVW200RB-8 SHVW225RB-8 SHVW250RB-8
10 SHVW100RB-10 SHVW125RB-10 SHVW160RB-10 SHVW200RB-10 SHVW225RB-10 SHVW250RB-10
12.5 SHVW100RB-12.5 SHVW125RB-12.5 SHVW160RB-12.5 SHVW200RB-12.5 SHVW225RB-12.5 SHVW250RB-12.5
16 SHVW100RB-16 SHVW125RB-16 SHVW160RB-16 SHVW200RB-16 SHVW225RB-16 SHVW250RB-16
20 SHVW100RB-20 SHVW125RB-20 SHVW160RB-20 SHVW200RB-20 SHVW225RB-20 SHVW250RB-20
25 SHVW100RB-25 SHVW125RB-25 SHVW160RB-25 SHVW200RB-25 SHVW225RB-25 SHVW250RB-25
31.5 SHVW100RB-31.5 SHVW125RB-31.5 SHVW160RB-31.5 SHVW200RB-31.5 SHVW225RB-31.5 SHVW250RB-31.5
40 SHVW100RB-40 SHVW125RB-40 SHVW160RB-40 SHVW200RB-40 SHVW225RB-40 SHVW250RB-40
50 SHVW100RB-50 SHVW125RB-50 SHVW160RB-50 SHVW200RB-50 SHVW225RB-50 SHVW250RB-50





MHI HASEG Worm Gear Reducer SHVW  Series Size：280~500（Output Shaft Arrangement：Left）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Left 5 SHVW280LO-5 SHVW320LO-5 SHVW360LO-5 SHVW400LO-5 SHVW450LO-5 SHVW500LO-5
6.3 SHVW280LO-6.3 SHVW320LO-6.3 SHVW320LO-6.3 SHVW400LO-6.3 SHVW450LO-6.3 SHVW500LO-6.3
8 SHVW280LO-8 SHVW320LO-8 SHVW320LO-8 SHVW400LO-8 SHVW450LO-8 SHVW500LO-8
10 SHVW280LO-10 SHVW320LO-10 SHVW320LO-10 SHVW400LO-10 SHVW450LO-10 SHVW500LO-10
12.5 SHVW280LO-12.5 SHVW320LO-12.5 SHVW320LO-12.5 SHVW400LO-12.5 SHVW450LO-12.5 SHVW500LO-12.5
16 SHVW280LO-16 SHVW320LO-16 SHVW320LO-16 SHVW400LO-16 SHVW450LO-16 SHVW500LO-16
20 SHVW280LO-20 SHVW320LO-20 SHVW320LO-20 SHVW400LO-20 SHVW450LO-20 SHVW500LO-20
25 SHVW280LO-25 SHVW320LO-25 SHVW320LO-25 SHVW400LO-25 SHVW450LO-25 SHVW500LO-25
31.5 SHVW280LO-31.5 SHVW320LO-31.5 SHVW320LO-31.5 SHVW400LO-31.5 SHVW450LO-31.5 SHVW500LO-31.5
40 SHVW280LO-40 SHVW320LO-40 SHVW320LO-40 SHVW400LO-40 SHVW450LO-40 SHVW500LO-40
50 SHVW280LO-50 SHVW320LO-50 SHVW320LO-50 SHVW400LO-50 SHVW450LO-50 SHVW500LO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Left 5 SHVW280LU-5 SHVW320LU-5 SHVW360LU-5 SHVW400LU-5 SHVW450LU-5 SHVW500LU-5
6.3 SHVW280LU-6.3 SHVW320LU-6.3 SHVW360LU-6.3 SHVW400LU-6.3 SHVW450LU-6.3 SHVW500LU-6.3
8 SHVW280LU-8 SHVW320LU-8 SHVW360LU-8 SHVW400LU-8 SHVW450LU-8 SHVW500LU-8
10 SHVW280LU-10 SHVW320LU-10 SHVW360LU-10 SHVW400LU-10 SHVW450LU-10 SHVW500LU-10
12.5 SHVW280LU-12.5 SHVW320LU-12.5 SHVW360LU-12.5 SHVW400LU-12.5 SHVW450LU-12.5 SHVW500LU-12.5
16 SHVW280LU-16 SHVW320LU-16 SHVW360LU-16 SHVW400LU-16 SHVW450LU-16 SHVW500LU-16
20 SHVW280LU-20 SHVW320LU-20 SHVW360LU-20 SHVW400LU-20 SHVW450LU-20 SHVW500LU-20
25 SHVW280LU-25 SHVW320LU-25 SHVW360LU-25 SHVW400LU-25 SHVW450LU-25 SHVW500LU-25
31.5 SHVW280LU-31.5 SHVW320LU-31.5 SHVW360LU-31.5 SHVW400LU-31.5 SHVW450LU-31.5 SHVW500LU-31.5
40 SHVW280LU-40 SHVW320LU-40 SHVW360LU-40 SHVW400LU-40 SHVW450LU-40 SHVW500LU-40
50 SHVW280LU-50 SHVW320LU-50 SHVW360LU-50 SHVW400LU-50 SHVW450LU-50 SHVW500LU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Left 5 SHVW280LB-5 SHVW320LB-5 SHVW360LB-5 SHVW400LB-5 SHVW450LB-5 SHVW500LB-5
6.3 SHVW280LB-6.3 SHVW320LB-6.3 SHVW360LB-6.3 SHVW400LB-6.3 SHVW450LB-6.3 SHVW500LB-6.3
8 SHVW280LB-8 SHVW320LB-8 SHVW360LB-8 SHVW400LB-8 SHVW450LB-8 SHVW500LB-8
10 SHVW280LB-10 SHVW320LB-10 SHVW360LB-10 SHVW400LB-10 SHVW450LB-10 SHVW500LB-10
12.5 SHVW280LB-12.5 SHVW320LB-12.5 SHVW360LB-12.5 SHVW400LB-12.5 SHVW450LB-12.5 SHVW500LB-12.5
16 SHVW280LB-16 SHVW320LB-16 SHVW360LB-16 SHVW400LB-16 SHVW450LB-16 SHVW500LB-16
20 SHVW280LB-20 SHVW320LB-20 SHVW360LB-20 SHVW400LB-20 SHVW450LB-20 SHVW500LB-20
25 SHVW280LB-25 SHVW320LB-25 SHVW360LB-25 SHVW400LB-25 SHVW450LB-25 SHVW500LB-25
31.5 SHVW280LB-31.5 SHVW320LB-31.5 SHVW360LB-31.5 SHVW400LB-31.5 SHVW450LB-31.5 SHVW500LB-31.5
40 SHVW280LB-40 SHVW320LB-40 SHVW360LB-40 SHVW400LB-40 SHVW450LB-40 SHVW500LB-40
50 SHVW280LB-50 SHVW320LB-50 SHVW360LB-50 SHVW400LB-50 SHVW450LB-50 SHVW500LB-50



MHI HASEG Worm Gear Reducer SHVW  Series Size：280~500（Output Shaft Arrangement：Right）



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Right 5 SHVW280RO-5 SHVW320RO-5 SHVW360RO-5 SHVW400RO-5 SHVW450RO-5 SHVW500RO-5
6.3 SHVW280RO-6.3 SHVW320RO-6.3 SHVW360RO-6.3 SHVW400RO-6.3 SHVW450RO-6.3 SHVW500RO-6.3
8 SHVW280RO-8 SHVW320RO-8 SHVW360RO-8 SHVW400RO-8 SHVW450RO-8 SHVW500RO-8
10 SHVW280RO-10 SHVW320RO-10 SHVW360RO-10 SHVW400RO-10 SHVW450RO-10 SHVW500RO-10
12.5 SHVW280RO-12.5 SHVW320RO-12.5 SHVW360RO-12.5 SHVW400RO-12.5 SHVW450RO-12.5 SHVW500RO-12.5
16 SHVW280RO-16 SHVW320RO-16 SHVW360RO-16 SHVW400RO-16 SHVW450RO-16 SHVW500RO-16
20 SHVW280RO-20 SHVW320RO-20 SHVW360RO-20 SHVW400RO-20 SHVW450RO-20 SHVW500RO-20
25 SHVW280RO-25 SHVW320RO-25 SHVW360RO-25 SHVW400RO-25 SHVW450RO-25 SHVW500RO-25
31.5 SHVW280RO-31.5 SHVW320RO-31.5 SHVW360RO-31.5 SHVW400RO-31.5 SHVW450RO-31.5 SHVW500RO-31.5
40 SHVW280RO-40 SHVW320RO-40 SHVW360RO-40 SHVW400RO-40 SHVW450RO-40 SHVW500RO-40
50 SHVW280RO-50 SHVW320RO-50 SHVW360RO-50 SHVW400RO-50 SHVW450RO-50 SHVW500RO-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Right 5 SHVW280RU-5 SHVW320RU-5 SHVW360RU-5 SHVW400RU-5 SHVW450RU-5 SHVW500RU-5
6.3 SHVW280RU-6.3 SHVW320RU-6.3 SHVW360RU-6.3 SHVW400RU-6.3 SHVW450RU-6.3 SHVW500RU-6.3
8 SHVW280RU-8 SHVW320RU-8 SHVW360RU-8 SHVW400RU-8 SHVW450RU-8 SHVW500RU-8
10 SHVW280RU-10 SHVW320RU-10 SHVW360RU-10 SHVW400RU-10 SHVW450RU-10 SHVW500RU-10
12.5 SHVW280RU-12.5 SHVW320RU-12.5 SHVW360RU-12.5 SHVW400RU-12.5 SHVW450RU-12.5 SHVW500RU-12.5
16 SHVW280RU-16 SHVW320RU-16 SHVW360RU-16 SHVW400RU-16 SHVW450RU-16 SHVW500RU-16
20 SHVW280RU-20 SHVW320RU-20 SHVW360RU-20 SHVW400RU-20 SHVW450RU-20 SHVW500RU-20
25 SHVW280RU-25 SHVW320RU-25 SHVW360RU-25 SHVW400RU-25 SHVW450RU-25 SHVW500RU-25
31.5 SHVW280RU-31.5 SHVW320RU-31.5 SHVW360RU-31.5 SHVW400RU-31.5 SHVW450RU-31.5 SHVW500RU-31.5
40 SHVW280RU-40 SHVW320RU-40 SHVW360RU-40 SHVW400RU-40 SHVW450RU-40 SHVW500RU-40
50 SHVW280RU-50 SHVW320RU-50 SHVW360RU-50 SHVW400RU-50 SHVW450RU-50 SHVW500RU-50



SHVW Gear Ratio: 5~50 MHI HASEG Worm Gear Reducer SHVW  Series Size
280 320 360 400 450 500
Output Shaft Arrangement：Right 5 SHVW280RB-5 SHVW320RB-5 SHVW360RB-5 SHVW400RB-5 SHVW450RB-5 SHVW500RB-5
6.3 SHVW280RB-6.3 SHVW320RB-6.3 SHVW360RB-6.3 SHVW400RB-6.3 SHVW450RB-6.3 SHVW500RB-6.3
8 SHVW280RB-8 SHVW320RB-8 SHVW360RB-8 SHVW400RB-8 SHVW450RB-8 SHVW500RB-8
10 SHVW280RB-10 SHVW320RB-10 SHVW360RB-10 SHVW400RB-10 SHVW450RB-10 SHVW500RB-10
12.5 SHVW280RB-12.5 SHVW320RB-12.5 SHVW360RB-12.5 SHVW400RB-12.5 SHVW450RB-12.5 SHVW500RB-12.5
16 SHVW280RB-16 SHVW320RB-16 SHVW360RB-16 SHVW400RB-16 SHVW450RB-16 SHVW500RB-16
20 SHVW280RB-20 SHVW320RB-20 SHVW360RB-20 SHVW400RB-20 SHVW450RB-20 SHVW500RB-20
25 SHVW280RB-25 SHVW320RB-25 SHVW360RB-25 SHVW400RB-25 SHVW450RB-25 SHVW500RB-25
31.5 SHVW280RB-31.5 SHVW320RB-31.5 SHVW360RB-31.5 SHVW400RB-31.5 SHVW450RB-31.5 SHVW500RB-31.5
40 SHVW280RB-40 SHVW320RB-40 SHVW360RB-40 SHVW400RB-40 SHVW450RB-40 SHVW500RB-40
50 SHVW280RB-50 SHVW320RB-50 SHVW360RB-50 SHVW400RB-50 SHVW450RB-50 SHVW500RB-50


View as


  • The MHI HASEG Worm Gear Reducer SHVW65L-5 is a versatile and efficient solution for applications requiring moderate speed reduction and high torque. Its durable construction, high efficiency, and compact design make it a reliable choice for various industrial and automated systems. Supported by MHI HASEG’s expertise, this gear reducer ensures dependable performance and minimal maintenance.

    Read More Send Inquiry Read More

  • The MHI HASEG Worm Gear Reducer SHVW65R-5 is a reliable and efficient gear reducer designed for a variety of industrial applications. With its high efficiency, durable construction, and easy maintenance, it is well-suited for optimizing mechanical systems in diverse environments. Comprehensive after-sales support from HMI HASEG CO., LTD. and distribution through Melink Automation ensure expert assistance, timely repairs, and ongoing service, guaranteeing the long-term performance and reliability of the gear reducer.

    Read More Send Inquiry Read More
