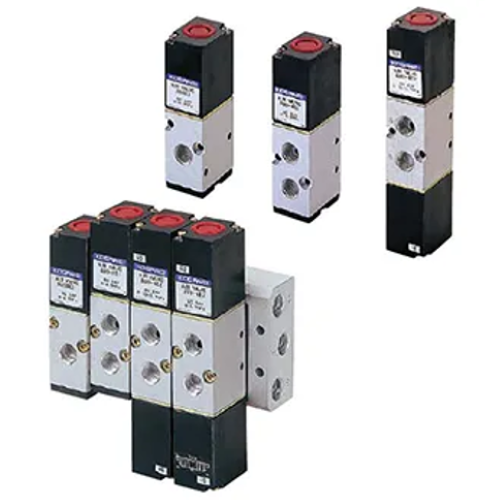

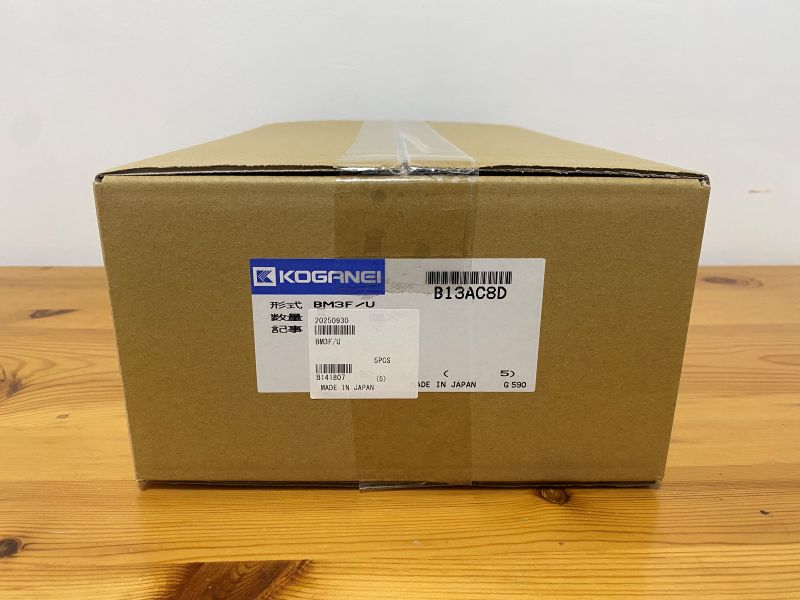

KOGANEI Solenoid Valve Manifold BM3F/U
The KOGANEI Solenoid Valve Manifold BM3F/U is a precision-engineered, modular manifold system designed for seamless integration with the KOGANEI 200 Series Solenoid Valves. Engineered for compactness, reliability, and easy maintenance, the KOGANEI Solenoid Valve Manifold BM3F/U enables efficient multi-valve assembly, reducing air piping complexity and saving valuable installation space in pneumatic systems.
Built with a high-strength aluminum body and accurately machined ports, the KOGANEI Solenoid Valve Manifold BM3F/U ensures superior air-tightness, durability, and stable air distribution. Each manifold base allows multiple valves to be connected in series, simplifying air circuit design while enabling individual valve removal or replacement without interrupting the entire system.
The KOGANEI Solenoid Valve Manifold BM3F/U is available in two configurations — BM3F (side port) and BM3U (bottom port) — to accommodate different equipment layouts and piping orientations. This flexibility allows designers to choose the optimal setup for compact machine panels or large-scale automated systems. Its modular design also makes future system expansion and reconfiguration easy, supporting dynamic production environments.
With compatibility for both 2-port and 3-port valve models, the KOGANEI Solenoid Valve Manifold BM3F/U provides outstanding versatility in pneumatic control applications. The manifold supports stable, uniform air flow to each connected valve, improving the performance and response time of the entire control system.
Key Benefits
-
Modular manifold for KOGANEI 200 Series solenoid valves.
-
Available in BM3F (side port) and BM3U (bottom port) versions.
-
Compact, lightweight aluminum body with high air-tightness.
-
Simple assembly, disassembly, and maintenance.
-
Supports multiple valve combinations and easy system expansion.
-
Reliable air flow distribution and reduced piping requirements.
Typical Applications
The KOGANEI Solenoid Valve Manifold BM3F/U is ideal for use in factory automation systems, assembly equipment, pneumatic control panels, and packaging machinery. It is especially suited for systems requiring efficient, multi-valve operation with high reliability and quick maintenance access.
For quotations, specifications, or genuine product inquiries for the KOGANEI Solenoid Valve Manifold BM3F/U, please contact Melink Automation, your trusted distributor of authentic KOGANEI pneumatic components.
