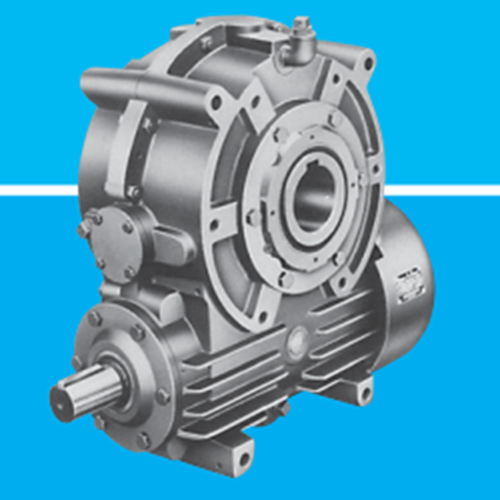

MHI HASEG Worm Gear Reducer SEUA Series

The MHI HASEG Worm Gear Reducer SEUA Series is a compact, two-stage horizontal-shaft worm gear reducer specifically engineered for high-reduction, light-duty applications. Combining MHI HASEG’s precision Niemann tooth profile with a space-saving double-worm design, the SEUA Series delivers smooth torque output, self-locking performance, and stable operation for small-scale machinery and automation systems.

Key Features

1. Two-Stage Compact Design

   The SEUA Series uses a dual-worm gear configuration to achieve high reduction ratios (up to 250:1) within a small housing, making it ideal for applications where high torque at low speed is needed in a limited space.



2. Niemann Tooth Profile for Smooth Operation

   The concave-convex Niemann tooth geometry increases tooth engagement area and improves oil film retention, providing smoother, quieter operation with reduced wear and longer gear life.



3. Self-Locking for Safety and Stability

   With low lead-angle worm gears in both stages, the SEUA Series offers strong self-locking properties, which prevent back-driving and help maintain precise positioning without the need for additional braking mechanisms.



4. Quiet and Vibration-Free Performance

   Optimized gear mesh design ensures low noise and minimal vibration, which is particularly important in laboratory, medical, or sensitive automation settings.



5. Efficient Lubrication & Easy Maintenance

   Splash lubrication with Klüber SYNTHESO HT or SYNTH GH6 ensures consistent performance. The reducer includes oil-level indicators, grease nipples for bearings, and accessible ports for oil filling and draining.



6. Compliant with JIS Standards

   All dimensions and tolerances are manufactured according to JIS B1301-1976, ensuring compatibility and ease of integration with other mechanical components.



Typical Specifications

Applications

• Precision Automation: Compact high-reduction drive for step-and-hold systems.

• Light-Duty Lifting Devices: Safe self-locking for vertical loads.

• Compact Conveyors: Reliable low-speed torque in small equipment.

• Medical and Laboratory Equipment: Quiet and stable motion in sensitive environments.

• Packaging Machinery: High-torque, space-saving drive systems.



Why Choose the SEUA Series?

• Compact High-Reduction Drive: Achieve up to 400:1 reduction in limited space.

• Built-In Safety: Dual self-locking worm gears ensure secure holding.

• Low Maintenance: Simplified service with easy access to lubrication points.

• Durable & Quiet: Precision gearing ensures consistent, low-noise performance.

• Trusted Support: Backed by Melink Automation and MHI HASEG’s engineering expertise.



For technical drawings, performance data, or selection assistance, contact Melink Automation, the distributor of MHI HASEG Worm Gear Reducer SEUA Series.

MHI HASEG Worm Gear Reducer SEUA  Series Size：125~250（Output Shaft Arrangement：Left）

MHI HASEG Worm Gear Reducer SEUA  Series Size：125~250（Output Shaft Arrangement：Right）

MHI HASEG Worm Gear Reducer SEUA  Series Size：280~400（Output Shaft Arrangement：Left）

MHI HASEG Worm Gear Reducer SEUA  Series Size：280~400（Output Shaft Arrangement：Right）
