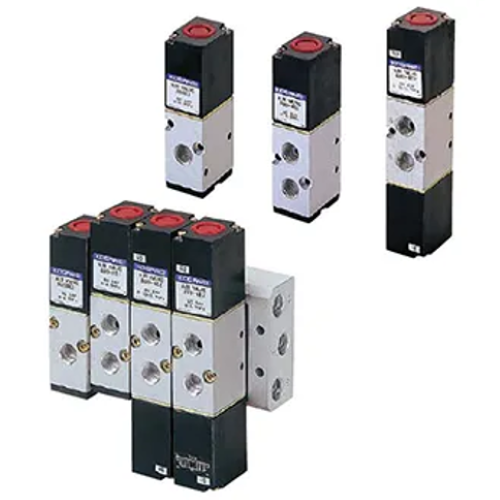

KOGANEI Solenoid Valve 200E1-L
The KOGANEI Solenoid Valve 200E1-L is a high-quality, compact, and direct-acting valve from the KOGANEI 200 Series, designed for precision pneumatic control in a wide range of industrial automation applications. With its built-in LED indicator (-L type), the KOGANEI Solenoid Valve 200E1-L provides clear visual confirmation of valve operation, simplifying maintenance and reducing downtime during system setup or inspection.
Engineered with a pressure-balanced poppet seal mechanism, the KOGANEI Solenoid Valve 200E1-L offers stable and reliable operation even under fluctuating pressures. Its compact design delivers a large flow capacity and fast response, making it ideal for high-speed cylinder actuation and pneumatic signal control. The valve supports both 2-port and 3-port configurations, enabling flexibility for a variety of automation and air supply switching systems.
Designed for versatility, the KOGANEI Solenoid Valve 200E1-L can be used as a stand-alone valve or installed on a BM-series manifold, providing efficient multi-valve integration for space-saving pneumatic circuits. Its durable coil construction ensures long service life and energy efficiency, while optional features such as surge suppressors (-SR) and various electrical connectors increase compatibility with diverse system requirements.
Key Features
-
Direct-acting, pressure-balanced design with stable operation.
-
Compact body with high flow capacity and quick response.
-
LED indicator (-L type) for easy operation monitoring.
-
Usable as a single unit or manifold-mounted.
-
Low power consumption for continuous or high-frequency operation.
-
Optional surge suppression and multiple voltage configurations.
Main Specifications
-
Fluid: Air (filtered, lubricated or non-lubricated).
-
Operating pressure range: 0 to 0.9 MPa.
-
Temperature range: 0 to 50°C.
-
Port size: Rc 1/4 (optional 1/4 NPT).
-
Flow coefficient (Cv): Approx. 0.47.
-
Voltage options: DC24V, AC100V, AC200V.
-
Weight: Approx. 300 g.
Applications
The KOGANEI Solenoid Valve 200E1-L is widely used in factory automation, assembly lines, and pneumatic control systems. It is particularly suitable for controlling air cylinders (ø32–ø80 mm), pneumatic tools, and mechanical actuators that require compact, energy-efficient, and high-response valves. Combining precision, reliability, and durability, the KOGANEI Solenoid Valve 200E1-L delivers exceptional performance and long-term operational stability in demanding industrial environments.
For pricing, technical support, or stock availability of the KOGANEI Solenoid Valve 200E1-L, please contact Melink Automation — your trusted source for genuine KOGANEI pneumatic components. For detailed specifications, CAD data, or quotation requests, please email or reach out through our sales team.
