Fuji Zero Phase Reactor ACL-40C

The Fuji Electric Zero-Phase Reactor ACL-40C is a highly advanced and reliable solution designed to address the challenges of radio frequency noise in modern industrial systems. As Variable Speed Drives (VSDs) become increasingly prevalent in automation and motor control, the need for effective noise suppression grows more critical. The ACL-40C serves as a vital component in ensuring the seamless operation of equipment by reducing electromagnetic interference (EMI) and protecting sensitive electronics from high-frequency disturbances.

Expertly engineered to minimize radio frequency noise generated by VSDs, the ACL-40C operates by suppressing high-frequency harmonics produced during VSD switching operations. These harmonics, if left unchecked, can interfere with other equipment and degrade overall system performance. By integrating the ACL-40C into your system, you can effectively prevent noise from transmitting through power supply lines, ensuring cleaner and more stable electrical performance.

Product Description

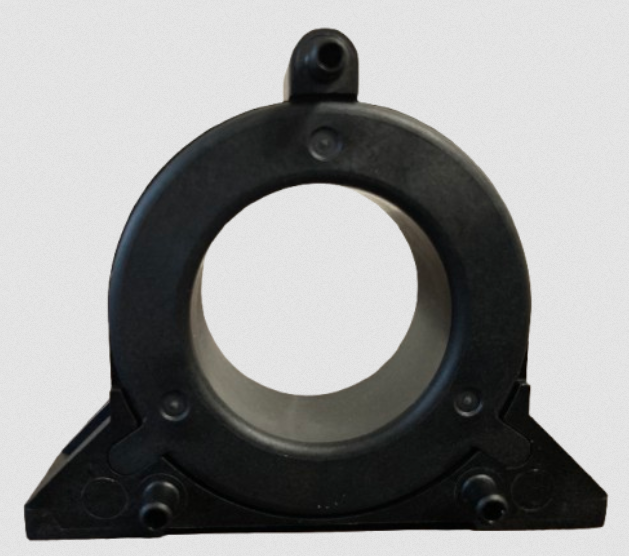

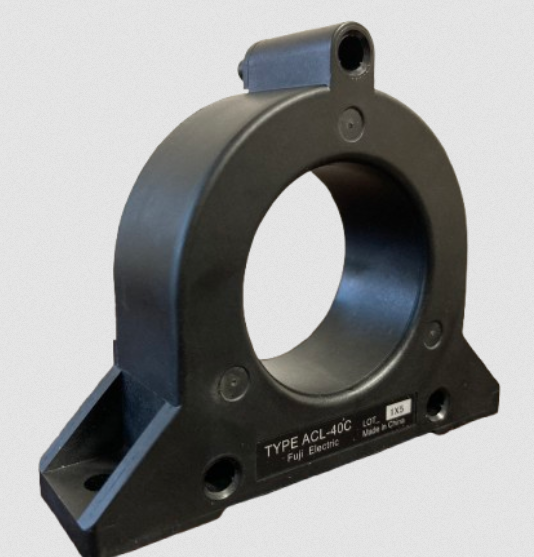

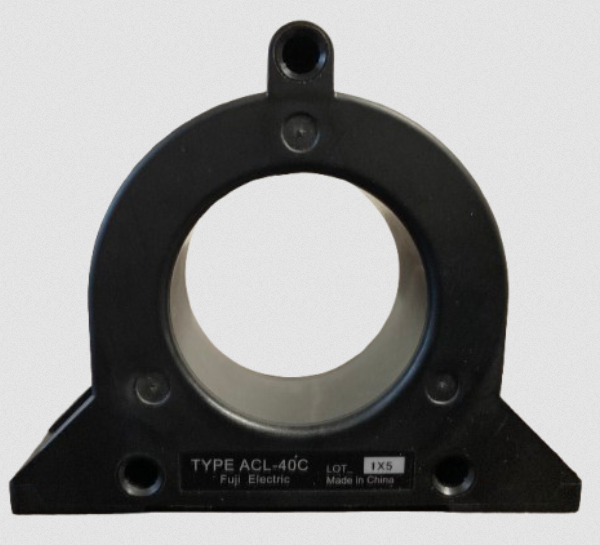

Fuji Electric Zero-Phase Reactor ACL-40C

The Fuji Electric Zero-Phase Reactor ACL-40C is a high-performance device designed to reduce radio frequency noise in inverter-driven systems. By suppressing high-frequency harmonics, the ACL-40C improves electromagnetic compatibility (EMC) and ensures the efficient operation of sensitive equipment. Compact and reliable, the ACL-40C is ideal for applications demanding superior noise reduction and stability.

Key Features

Radio Noise Suppression:
The ACL-40C minimizes radio frequency interference, ensuring stable system performance.
Harmonic Reduction:
By dampening high-frequency harmonics, the ACL-40C enhances the performance of connected devices.
Compact and Robust Design:
The ACL-40C is constructed with flame-retardant materials and designed for easy installation.
Wide Temperature Range:
Operates reliably between -40°C and +130°C, making the ACL-40C suitable for various environments.

Technical Specifications

Model Number: ACL-40C
Core Loss: 5W at a 25K temperature rise.
Applicable Wire Sizes:
- 4 turns: 2.0, 3.5, 5.5 mm²
- 2 turns: 8, 14 mm²
Case Material: UL94 V-0 flame-retardant for added safety.

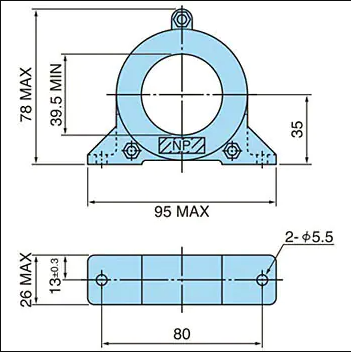

Dimensions: Compact for flexible installation options.

Installation Guidelines

Wire Routing:
- Pass three-phase wires (U, V, W) and ground wires through the ACL-40C in the same direction and number of turns.
Mounting:
- Secure the ACL-40C to a non-flammable surface, maintaining a 1–2 mm gap if multiple reactors are used.
Multi-Motor Systems:
- Install the ACL-40C after branching to each motor for optimal performance.

Applications

Industrial motor drives requiring noise suppression.
Systems using Fuji Electric’s FRENIC series inverters.
Any inverter-driven equipment benefiting from the ACL-40C’s harmonic reduction capabilities.

The Fuji Electric Zero-Phase Reactor ACL-40C is a versatile solution for reducing radio noise and enhancing system reliability. Whether used in industrial or commercial applications, the ACL-40C ensures consistent and efficient performance. For further details or support, feel free to reach out!
