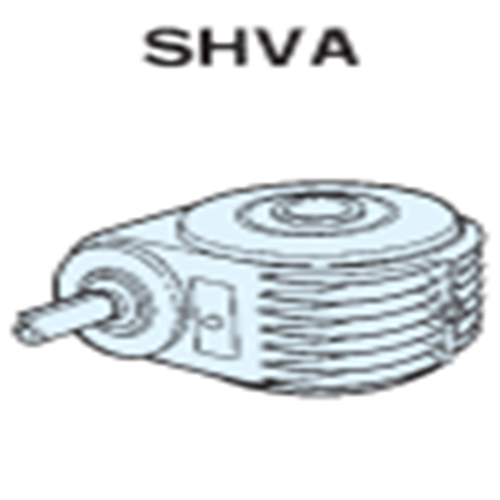

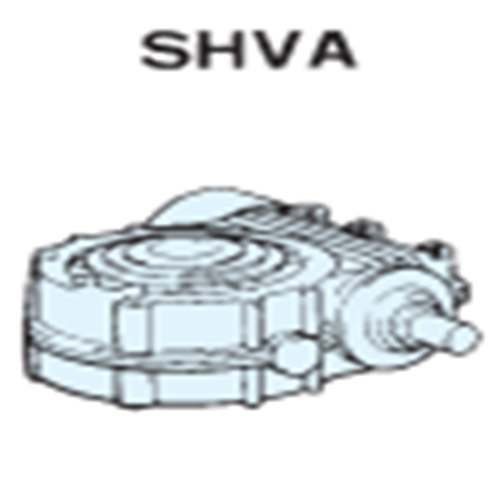

MHI HASEG Worm Gear Reducer SHVA65L-5

MHI HASEG Worm Gear Reducer SHVA65L-5

Technical Specifications：

• Model: SHVA65L-5
• Type: Worm Gear Reducer
• Reduction Ratio: 5:1
• Input Speed: 1500 RPM
• Output Speed: 300 RPM
• Output Torque: 50 Nm
• Efficiency: 60%
• Mounting Position: Horizontal
• Housing Material: High-strength Cast Iron
• Lubrication: Synthetic Oil
• Weight: 25 kg
• Temperature Range: -10°C to 60°C
• Protection Class: IP54

Key Features：

• Moderate Torque Output: Delivers an output torque of 50 Nm, suitable for applications requiring moderate torque levels.
• Reduction Ratio: Achieves a reduction ratio of 5:1, providing effective speed reduction while maintaining a balanced torque output.
• Durable Construction: Built with high-strength cast iron, ensuring durability and reliability under various operating conditions.
• Efficient Operation: Operates with an efficiency of 60%, optimizing power transmission and minimizing energy losses.
• Maintenance Accessibility: Designed for easy maintenance with accessible lubrication points and inspection areas.

Applications：

1. Precision Machinery



   • The SHVA65L-5 is ideal for precision machinery where exact speed control and reliable performance are crucial. Its moderate reduction ratio ensures accurate movement and positioning, essential for high-precision tasks.



2. Steel Rolling Machinery



   • In steel rolling operations, the SHVA65L-5 provides the necessary torque and speed reduction to handle heavy loads and withstand the rigorous demands of steel processing.



3. Semiconductor Manufacturing Equipment



   • Semiconductor manufacturing requires highly controlled and stable operations. The SHVA65L-5’s efficiency and durability make it suitable for the precise requirements of semiconductor fabrication equipment.



4. Aerospace Industry



   • For aerospace applications, where reliability and performance under various conditions are critical, the SHVA65L-5 offers the robustness and consistency needed for aerospace machinery and systems.



5. Rubber Processing Machinery



   • The gear reducer’s capacity to handle moderate torque levels and provide stable speed reduction makes it well-suited for use in rubber processing machinery, which requires reliable performance for continuous operations.



6. Printing Machinery



   • In printing machinery, where consistent speed and reliable operation are necessary for high-quality print production, the SHVA65L-5 delivers the performance required to maintain optimal printing processes.



7. Textile Machinery



   • Textile machinery often demands precise speed control and durable components. The SHVA65L-5’s performance characteristics align well with the needs of textile machinery, ensuring efficient and reliable operation.



These applications demonstrate the versatility of the MHI HASEG Worm Gear Reducer SHVA65L-5 in various industries requiring dependable torque and speed control.
