Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

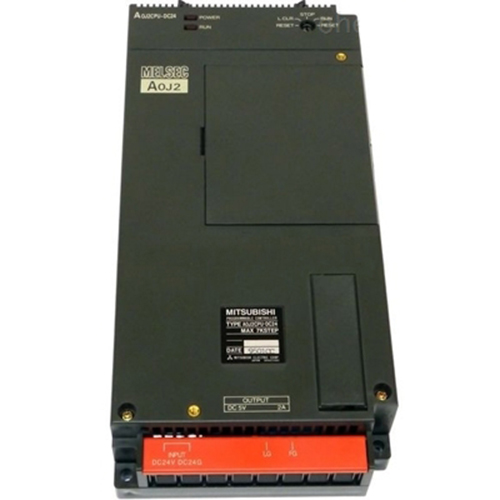

A0J2CPU-DC24 Mitsubishi A series CPU simple specifications are as follows:
[Control method] Store the program and repeat the operation
[I/O control method] Direct system
[Programming language] Special sequence control language (relay symbols, logic symbols and SAP)
[Instructions] 21 types of sequence instructions, 38 types of basic instructions, 21 types of application instructions,
[Number of input and output points] 336 points (maximum 480 points, when using an extension base unit)
[Memory capacity and memory type] Maximum 7k
3K when 4KEROM, 4RAM, 4KROM; 7K when 16KRAM, 8KROM
[Basic command processing speed (LD command)] 4.4~5.6μs
[Power supply] AC100~120/200~240V input/DC5V 2A, DC24V 0.5A output
[Allow momentary power outage time] 1ms
[IC-RAM latch device backup] Backup battery, using lithium battery
[Parameter] Latch range and A6GPP or A7PU settings
[Watchdog Timer (WDT)] 200ms fixed
[Weight] 0.75kg
Power input specifications
[Input power supply] DC24V (+30%,-35%) (15.6~31.2 DC)
[Input current] 1.5A or less (DC15.6V), 1A or less (DC24V)
[Input power] 24W or less
[Surge current] 50A (within 2ms)
[Efficiency] More than 65%
Power output specifications
[Rated output current] 2A (5V DC)
[Overcurrent protection] 2.4A (5V DC)
[Output rise time] Within 150ms after power on
[Power display] LED display
A0J2CPU-DC24 Mitsubishi A series CPU price, A0J2CPU-DC24 parameter specifications, A0J2CPU-DC24 power supply specifications!
A0J2CPU-DC24 parameter description: 480 input and output points; program capacity 7K steps; basic command processing speed 4.4~5.6μs; DC24V input/DC5V 2A output.
