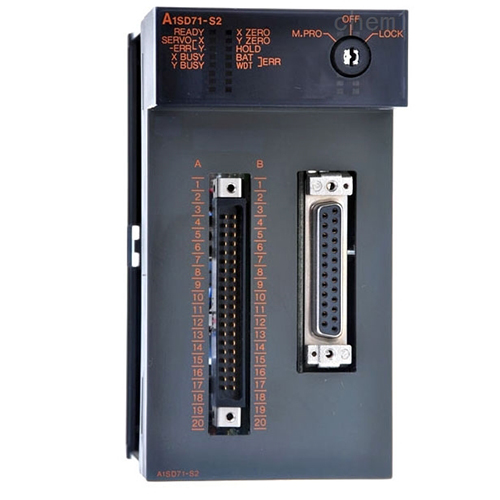

A1SD71-S2 Mitsubishi PLC positioning module product specifications
[Number of control axes] 2 axes
[Interpolation function] Linear interpolation
[Control system] Position control, speed/position switching control, speed control
[Control unit] Millimeter (mm), inch (inch), degree (degree), pulse (pulse)
[Positioning data] 400 data/axis
[GPS]
1. Positioning method
.Position control: incremental system/absolute system
. Speed-position switching control: incremental system
2. Position command
Maximum 162m (command unit: 0.1~10μm/pulse)
Maximum 16200inch (command unit: 1*10-5~0.001inch/pulse)
Maximum 16200degree (command unit: 1*10-5~0.001degree/pulse)
1~16252928 pulse
3. Command speed
10~120000mm/min (command unit: 10mm/min)
1~12000inch/min (command unit: 1inch/min)
1~12000degree/min (command unit: 1degree/min)
10~200000 pulse/s (command unit: 10pulse/s)
4. Acceleration/deceleration processing: automatic trapezoidal acceleration and deceleration
5. Acceleration/deceleration time: 64~50000ms
6. Correction function: error correction during position control and speed/position switching control
[Origin return] Yes, use switch setting
[M function] M output output function
[External power supply] Voltage DC4.75~26.4V, maximum power supply 50mA
[DC5V internal current consumption] 0.8A
[Outline dimensions H*W*D] 130*69.5*93.6mm
[Weight] 0.38kg
A1SD71-S2 Mitsubishi PLC positioning module, A1SD71 S2 specifications, A1SD71-S2 technical information.
A1SD71-S2 parameter description: 2 axes, control unit (mm, inch, degree, pulse), positioning data is 400 data/axis, position control, speed/position switching control, speed control, 40-pin connector.
