Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

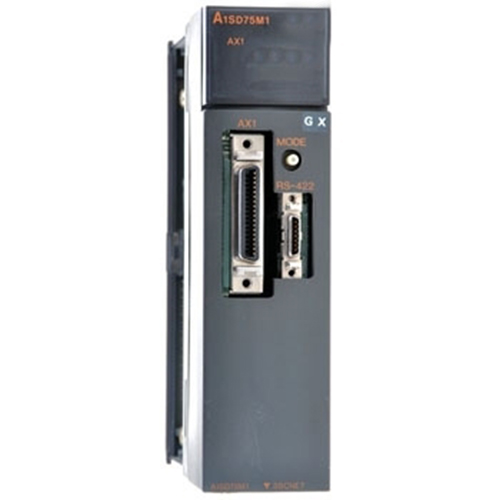

A1SD75M1 Mitsubishi Ans positioning module specifications detailed description:
[Output type] SSCNET cable
[Number of control axes] 1 axis
[Interpolation function] None
[Control system] PTP (point-to-point) control, path control (straight line and arc can be set), speed control, speed-position switching control
[Control unit] Millimeter (mm), inch (inch), degree (degree), pulse (pulse)
[Positioning data] 600 data (positioning data number 1~600)/axis (can be set with peripheral equipment), 100 data/axis (sequence program setting)
[GPS]
1. Positioning system
. PTP (point-to-point) control: incremental system/absolute system
. Path control: incremental system/absolute system
. Speed-position switching control: incremental system
2. Positioning range
1). absolute method
1. Absolute position detection system
. -214748364.8~214748364.7(μm)
. -21474.83648~21474.83647(inches)
. 0~359.99999(degrees)
. -2147483648~2147483647(pulse)
2. When the absolute position detection system (number of feedback pulses = 8192)
. -26843545.6~26843545.5μm
. -2684.35456~2684.35455inch
. 0~359.99999degree
. -268435456~268435455 pulse
3. When the absolute position detection system (number of feedback pulses = 16384)
. -53687091.2~53687091.1μm
. -5368.70912~5368.70911inch
. 0~359.99999degree
. -536870912~536870911 pulse
2). incremental system
1. Absolute position detection system
. -214748364.8~214748364.7(μm)
. -21474.83648~21474.83647(inches)
. -21474.83648~21474.83647(degree)
. -2147483648~2147483647(pulse)
2. When the absolute position detection system (number of feedback pulses = 8192)
. -26843545.6~26843545.5μm
. -2684.35456~2684.35455inch
. 0~359.99999degree
. -268435456~268435455 pulse
3. When the absolute position detection system (number of feedback pulses = 16384)
. -53687091.2~53687091.1μm
. -5368.70912~5368.70911inch
. 0~359.99999degree
. -536870912~536870911 pulse
3). speed-position switching control (INC mode)
1. Absolute position detection system
. 0~214748364.7(μm)
. 0~21474.83647(inches)
. 0~21474.83647(degrees)
. 0~2147483647(pulse)
2. When the absolute position detection system (number of feedback pulses = 8192)
. 0~26843545.5μm
. 0~2684.35455inch
. 0~359.99999degree
. 0~268435455 pulse
3. When the absolute position detection system (number of feedback pulses = 16384)
. 0~53687091.1μm
. 0~5368.70911inch
. 0~359.99999degree
. 0~536870911 pulse
3. Positioning command speed:
0.01~6000000.00mm/min
0.001~600000.000inch/min
0.001~600000.000degree/min
1~1000000 pulse/s
4. Acceleration/deceleration processing: automatic trapezoidal acceleration/deceleration, S-shaped acceleration/deceleration
5. Acceleration/deceleration time: 1~65535ms/1~8388608ms. Four modes can be set for each acceleration time and deceleration time.
6. Sudden stop deceleration time: 1~65535ms/1~8388608ms
[Maximum output command speed] 1M pulse/s
[Internal current consumption (5VDC)] 0.7A
[Weight] 0.35kg
[Number of occupied I/O points] 32 points (I/O allocation: 32 points for intelligent function module)
[Outline dimensions] 130(H)*34.5(W)*93.6(D)mm
A1SD75M1 Mitsubishi Ans positioning module is a 1-axis positioning module of Mitsubishi Ans series. The SSCNET cable is connected to the servo. A1SD75M1 price (face price) 6830, A1SD75M1 specifications.
A1SD75M1 parameter description: 1 axis, control unit (mm, inch, degree, pulse), positioning data is 600 data/axis, 36-pin pin connector, SSCNET cable.
