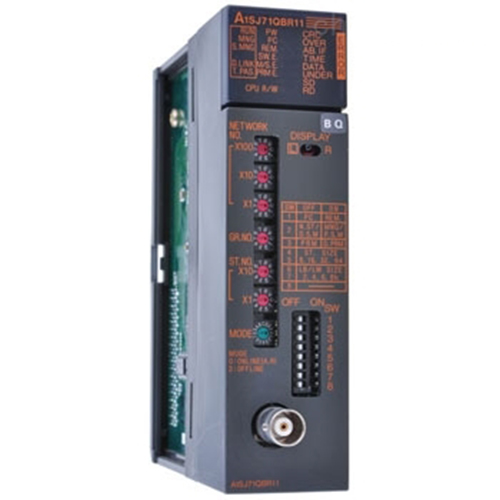

A1SJ71QBR11 Mitsubishi MELSECNET/10 grid module, A1SJ71QBR11 price, A1SJ71QBR11 technical information
A1SJ71QBR11 parameter description: MELSECNET/10 grid module, master station/ordinary station, 3C-2V/5C-2V coaxial cable, single bus
A1SJ71QBR11 Mitsubishi MELSECNET/10 grid module performance specifications:
[Network connection type] Single bus
[Maximum network points] LX/LY 8192 points 1k bytes, LB 8192 points 1k bytes, LW 8192 points 16k bytes
[Maximum points for 1 station]
Inter-PC network: (LY+LB)/8+(LY<=2000 bytes
Remote I/O station:
. Remote master station/remote sub-master station->remote I/O station: {(LY+ LB)÷8+(2×LW)}≦1600 bytes
. Remote I/O station->Remote master station/remote sub-master station: {(LX+ LB)÷8+(2×LW)}≦1600 bytes
. Remote master station -> remote deputy master station, remote deputy master station -> remote master station: {(LY+ LB)÷8+(2×LW)}≦2000 bytes
[Communication speed] 10Mbps
[Maximum number of groups] 32 PC networks, 33 remote I/O stations
[Total network distance] 500m (5C-2V)/300m (3C-2V), when using a repeater unit (A6BR10, A6BR10-DC), it can be extended to a maximum of 2.5km
[Communication cable] High frequency coaxial cable 3C-2V/5C-2V (JIS C3501 standard), 5C-FB (JIS C3502 standard)
[Applicable connectors] Connector plugs for 3C-2V, 5C-2V, and 5C-FB
[Maximum number of networks] 239
[Maximum number of groups] 9
[Communication method] Token bus
[Synchronization method] Frame synchronization
[Encoding method] Manchester method
[Transmission format] HDLC standard
[I/O occupied points] 32 points
[Internal current consumption (DC5V)] 0.8A
[Outline dimensions H*W*D] 130*34.5*104.6mm
[Weight] 0.3kg
