Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

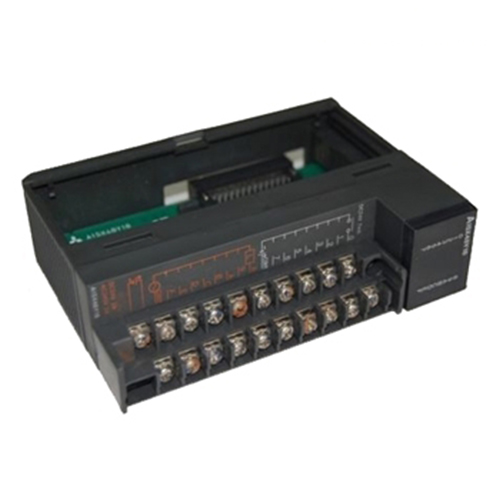

A1SX48Y18 Mitsubishi Ans series I/O module product specifications
[Enter specifications]
Input form: DC input (sink type)
Input points: 8 points
Rated input voltage: DC24V
Rated input current: about 7mA
Voltage input range: DC10.2~26.4V (ripple coefficient within 5%)
Maximum number of simultaneous input points: 100% (at DC26.4V)
ON voltage/ON current: DC14V or above/3.5mA or above
OFF power/OFF current: DC6.5V or less/1.7mA or less
Input impedance: about 3.3kΩ
Response time: OFF->ON and ON->OFF are less than 10ms (DC24V)
Common terminal: 8 points 1 common terminal
Isolation method: Optocoupler
[Output specifications]
Output type: relay output
Output points: 8 points
Rated load voltage/current: DC24V 2A/1 point, AC240V 2A (cosφ=1)/1 point, 8A/1 common terminal
Minimum switching load: DC5V 1mA
Maximum switching load: AC264V DC125V
Maximum switching frequency: 3600 times/j
Response time:
OFF->ON: less than 10ms
ON->OFF: less than 12ms
Surge suppressor: None
Fuse: None
External power supply voltage: DC24V±10%
External power supply current: 45mA
Common terminal: 8 points 1 common terminal
Isolation method: Optocoupler
[Operation indicator] ON indication (LED)
[External wiring method] 20 terminal block (M3.5 screw)
[Input and output points] 16 points
[DC5V internal current consumption] 85mA (standard: all points ON)
[Outline dimensions H*W*D[mm]] 130*34.5*93.6
[Weight] 0.23kg
A1SX48Y18 Mitsubishi Ans series I/O module, A1SX48Y18 price, A1SX48Y18 specifications.
A1SX48Y18 parameter description:
DC input: 8 points DC24V 7mA, response time 10ms, 8 points 1 common terminal, sink type
Relay output: DC24V/AC240V 2A/1 point, 8 points 1 common terminal, response time 12ms, 8 points 1 common terminal
20 point terminal block
