Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

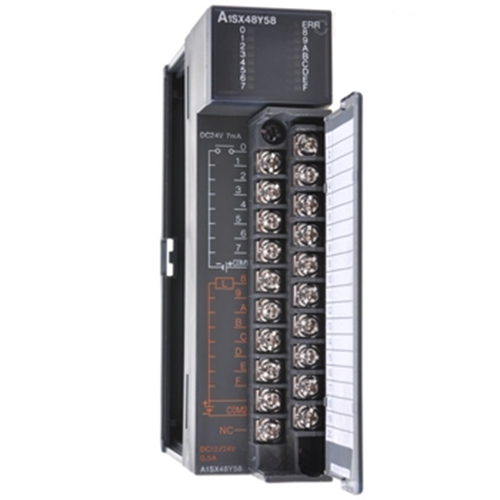

A1SX48Y58 Mitsubishi Ans series I/O module product specifications
[Enter specifications]
Input form: DC input (sink type)
Input points: 8 points
Rated input voltage: DC24V
Rated input current: about 7mA
Voltage input range: DC10.2~26.4V (ripple coefficient within 5%)
Maximum number of simultaneous input points: 100% (at DC26.4V)
ON voltage/ON current: DC14V or above/3.5mA or above
OFF power/OFF current: DC6.5V or less/1.7mA or less
Input impedance: about 3.3kΩ
Response time: OFF->ON and ON->OFF are less than 10ms (DC24V)
Common terminal: 8 points 1 common terminal
Isolation method: Optocoupler
[Output specifications]
Output type: transistor sink output
Output points: 8 points
Rated load voltage: DC10.2~30V
Maximum load current: 0.5A/1 point, 2A/1 common terminal
Maximum inrush current: 4A 10ms or less
Leakage current when OFF: 0.1mA or less
Maximum voltage drop when ON: 0.9VDC (standard) 0.5A, 1.5VDC (maximum) 0.5A
Response time: below 2ms
Surge suppressor: Zener diode
Fuse: Fuse 3.2A
External power supply voltage: DC12/24V (DC10.2~30.0V)
External power supply current: 60mA
Common terminal: 8 points 1 common terminal
Isolation method: Optocoupler
[Operation indicator] ON indication (LED)
[External wiring method] 20 terminal block (M3.5 screw)
[Input and output points] 16 points
[DC5V internal current consumption] 60mA (standard: all points ON)
[Outline dimensions H*W*D[mm]] 130*34.5*93.6
[Weight] 0.20kg
A1SX48Y58 Mitsubishi Ans series I/O module, A1SX48Y58 price, A1SX48Y58 specifications.
A1SX48Y58 parameter description:
DC input: 8 points DC24V 7mA, response time 10ms, 8 points 1 common terminal, sink type
Sink transistor output: 8 points DC12/24V; 0.5A/1 point, 2A/1 common terminal, response time 2ms, 8 points 1 common terminal
