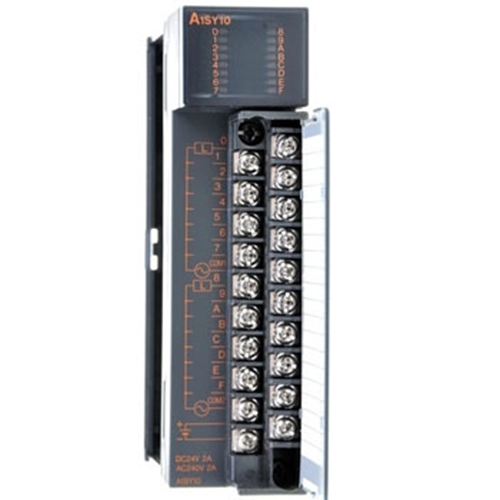

A1SY10 Mitsubishi Series Output Module

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported



A1SY10 Mitsubishi Ans series output module performance specifications

[Output points] 16 points

[Rated switching voltage and current] DC24V 2A (resistive load)/1 point, AC240V 2A (cosφ=1)/1 point, 8A/1 common terminal

[Minimum switching load] DC5V 1mA

[Maximum switching voltage] AC264V DC125V

[Maximum opening and closing frequency] 3600 times/hour

[Input response time] OFF-->ON below 10ms; ON-->OFF below 12ms

[Surge limiter/fuse] None

[External power supply]

Voltage: DC 24V±10 (pulse voltage 4Vp-p or less)

Current: 90mA

[Output method] 8A/1 shared

[Insulation method] Photoelectric isolation

[External circuit connection method] 20-point screw terminal block (M 3.5 screws)

[Input and output occupied points] 16 points

[DC5V internal consumption current] 120mA

[A1SY10 overall dimensions (H*W*D)]:130*34.5*93.6mm

[A1SY10 weight] 0.25KG



A1SY10 Mitsubishi Ans series output module, A1SY10 price (face price) 2030

A1SY10 Mitsubishi Ans series output module parameter description: 16 points AC240V/DC24V, 2A, relay output, response time 12ms, 8 points 1 common terminal, 20 points terminal block
