Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

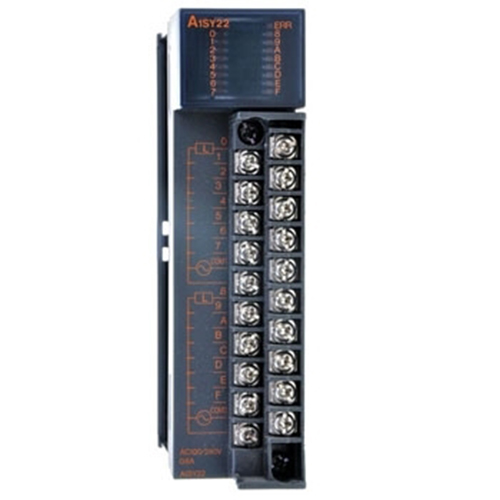

A1SY22 Mitsubishi A series PLC output module performance specifications
[Output points] 16 points
[Rated switching voltage and frequency] AC100/240V, 50/60Hz±3Hz
[Maximum load voltage] AC264V
[Maximum load current] 0.6A/1 point, 2.4A/1 common terminal
[Minimum load voltage and current] AC24V 100mA, AC100V 10mA, AC240V 20mA
[Maximum inrush current] 20A 10ms or less, 8A 100ms or less
[Leakage current when OFF] 3mA or less (at AC240V 60Hz), 1.5mA or less (at AC120V 60Hz)
[Maximum voltage when ON] AC1.5V or less (0.1~0.6A), AC1.8V or less (50~100mA), AC2V or less (10~50mA)
[Maximum opening and closing frequency] 3600 times/hour
[Input response time] OFF-->ON 1ms or less; ON-->OFF 1ms+0.5 cycle or less
[Surge limiter] CR absorber (0.01μF+47Ω)
[Fuse] Fuse 5A
[Fuse breaking capacity] 70A
[Error display] Yes
[External power supply]
Voltage: AC100~240V (AC85~264V)
Current: 2mA
[Output terminal mode] 8 points 1 common terminal
[Insulation method] Photoelectric isolation
[External circuit connection method] 20-point screw terminal block (M 3.5 screws)
[Input and output occupied points] 16 points
[DC5V internal consumption current] 270mA
[A1SY22 overall dimensions (H*W*D)]:130*34.5*93.6mm
[A1SY22 weight] 0.24KG
A1SY22 Mitsubishi Ans series 16-point output module, A1SY22 price (face price) 2490
A1SY22 Mitsubishi A series PLC output module parameter description: 16 points AC100~240V 0.6A/1 point, bidirectional thyristor output, 8A/1 common terminal, response time 1ms+0.5 cycle, 20-point terminal block
