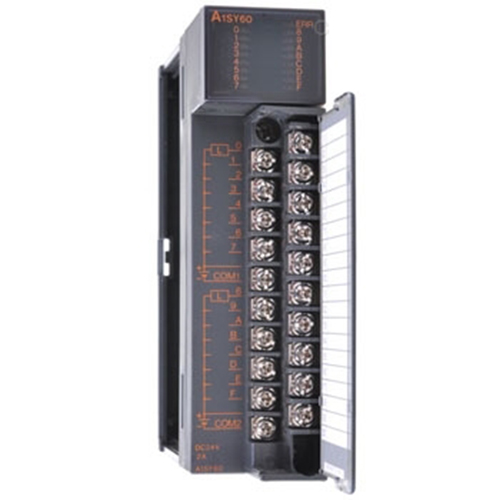

A1SY60 Mitsubishi PLC Output Module

A1SY60 Mitsubishi PLC output module parameter description: transistor sink output 16 points DC24V 2A/1 point, 4A/1 common terminal, response time 2ms, 8 points 1 common terminal, 20 point terminal block

Product Description

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported

A1SY60 Mitsubishi PLC output module performance specifications

[Output points] 16 points

[Rated voltage] DC24V (DC21.6~26.4V)

[External circuit connection method] 20-point terminal block

[Input and output occupied points] 16 points

[Maximum load current] 2A/1 point, 4A/1 common terminal (25℃), 1.8A/1 point, 3.6A/1 common terminal (45℃), 1.6A/1 point, 3.2A/1 common terminal ( 55℃)

[Maximum inrush current] 8A 10ms or less

[Leakage current when OFF] 0.1mA or less

[Maximum voltage when ON] DC0.9V (TYP.) 2A, DC1.5v (MAX.) 0.5A

[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less

[Input response time] OFF-->ON 2ms or less; ON-->OFF 2ms or less

[Surge Limiter] Zener Diode

[DC5V internal consumption current] 120mA

[Fuse] 5A

[Fuse capacity] 50A

[External power supply]

Voltage: DC24V (DC21.6~26.4V)

Current: 15mA

[Output method] 8 points 1 shared

[Insulation method] Photoelectric isolation

[A1SY60 overall dimensions (H*W*D)]:130*34.5*93.6mm

[A1SY60 weight] 0.25KG

A1SY60 Mitsubishi PLC output module parameter description: transistor sink output 16 points DC24V 2A/1 point, 4A/1 common terminal, response time 2ms, 8 points 1 common terminal, 20 point terminal block
