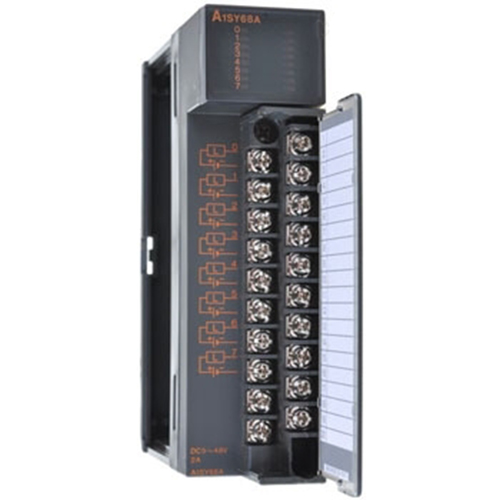

A1SY68A Full -point Independence Mitsubishi

Mitsubishi Ans series PLC 8-point DC5/12/24/48V 2A transistor source/sink output A1SY68A price (face price) 2180, A1SY68A technical parameters, A1SY68A functional specifications! A1SY68A all-point independent Mitsubishi parameter description: transistor source/sink shared output 8 points DC5/12/24/48V 2A/1 point, 4A/1 common terminal, response time 2ms, 8 points 1 common terminal, 20 point terminal block

Product Description

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported

A1SY68A Full Point Independent Mitsubishi Performance Specifications

[Output points] 8 points

[Rated voltage] DC5/12/24/48V (DC4.5~52.8V)

[External circuit connection method] 20-point terminal block

[Input and output occupied points] 16 points

[Maximum load current] 2A/1 point

[Maximum inrush current] 8A 10ms or less

[Leakage current when OFF] 0.1mA or less

[Maximum voltage when ON] DC0.4V (MAX.) 2A

[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less

[Input response time] OFF-->ON 3ms or less; ON-->OFF 10ms or less

[Surge Limiter] Zener Diode

[DC5V internal consumption current] 110mA

[Fuse] 5A

[Fuse capacity] 50A

[External power supply]

Voltage: DC24V (DC21.6~26.4V)

Current: 15mA

[Output method] All points independent

[Insulation method] Photoelectric isolation

[A1SY68A overall dimensions (H*W*D)]:130*34.5*93.6mm

[A1SY68A weight] 0.20KG

Mitsubishi Ans series PLC 8-point DC5/12/24/48V 2A transistor source/sink output A1SY68A price (face price) 2180, A1SY68A technical parameters, A1SY68A functional specifications!

A1SY68A all-point independent Mitsubishi parameter description: transistor source/sink shared output 8 points DC5/12/24/48V 2A/1 point, 4A/1 common terminal, response time 2ms, 8 points 1 common terminal, 20 point terminal block
