Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

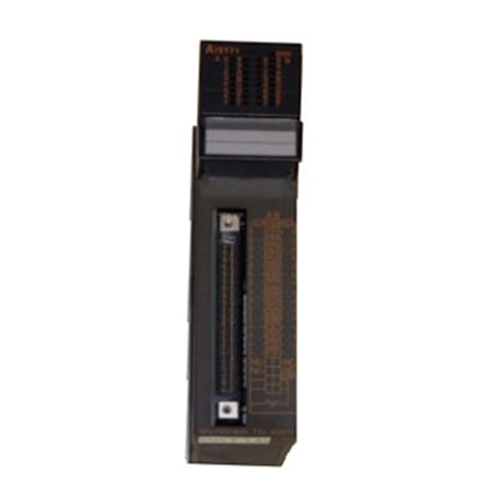

A1SY71 Mitsubishi PLC performance specifications
[Output points] 32 points
[Rated voltage] DC5/12V (DC4.5~15V)
[Maximum load current] 16mA/1 point, 256mA/1 common terminal
[Maximum inrush current] 40mA 10ms or less
[Output voltage when OFF] VOH: DC3.5V (VCC=DC5V, IOH=0.4mA)
[Maximum voltage when ON] VOL: DC0.3V
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Input response time] OFF-->ON below 1ms; ON-->OFF below 1ms
[Surge Limiter] None
[Fuse] 1.6A
[Fuse capacity] 50A
[External power supply]
Voltage: DC5/12V (DC4.5~15V)
Current: 150mA
[Output method] 32 points 1 shared
[Insulation method] Photoelectric isolation
[External circuit connection method] 40-pin connector
[Input and output occupied points] 32 points
[DC5V internal consumption current] 400mA
[A1SY71 overall dimensions (H*W*D)]:130*34.5*93.6mm
[A1SY71 weight] 0.19KG
A1SY71 Mitsubishi PLC Ans series output module A1SY71 price 32-point transistor sink type DC5/12V 16mA/1 point, transistor sink type 32-point output module A1SY71 price (face price) 2560, A1SY71 belongs to Mitsubishi Ans series PLC, A1SY71 performance specifications, A1SY71 information!
A1SY71 parameter description: 32 points DC5/12V 16mA/1 point, transistor sink output, 256mA/1 common terminal, response time ms, 32 points 1 common terminal, 40-pin connector
