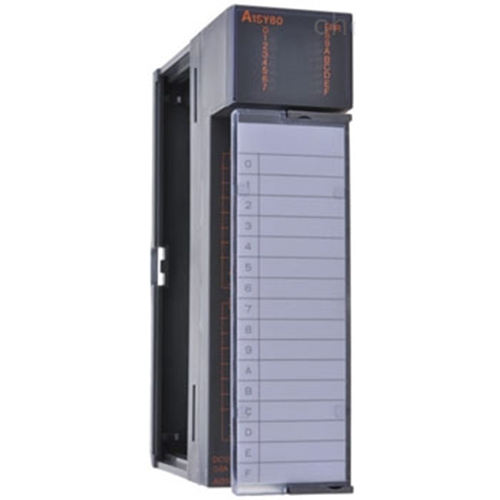

A1SY80 Mitsubishi PLC

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported



A1SY80 Mitsubishi PLC performance specifications

[Output points] 16 points

[Rated voltage] DC12/24V (DC10.2~30V)

[External circuit connection method] 20-point terminal block

[Input and output occupied points] 16 points

[DC5V internal consumption current] 120mA

[Maximum load current] 0.8A/1 point, 3.2A/1 common terminal

[Maximum inrush current] 8A 10ms or less

[Leakage current when OFF] 0.1mA or less

[Maximum voltage when ON] DC1.5V(MAX.) 0.8A

[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less

[Input response time] OFF-->ON 2ms or less; ON-->OFF 2ms or less

[Surge Limiter] Zener Diode

[Fuse] 5A

[Fuse capacity] 50A

[External power supply]

Voltage: DC12/24V (DC10.2~30.0V)

Current: 20mA

[Output method] 8 points 1 shared

[Insulation method] Photoelectric isolation

[A1SY80 overall dimensions (H*W*D)]:130*34.5*93.6mm

[A1SY80 weight] 0.20KG



A1SY80 Mitsubishi PLC parameter description: 16 points DC12/24V 0.8A/1 point, transistor source output, 3.2A/1 common terminal, response time 2ms, 8 points 1 common terminal, 20 point terminal block
