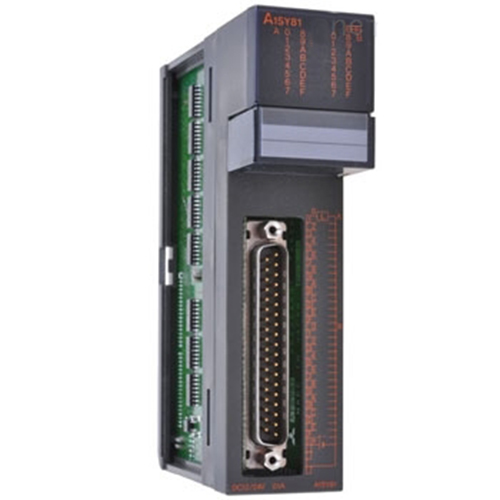

A1SY81 Mitsubishi PLC Module

A1SY81 price (face price) 3510, A1SY81 Mitsubishi Ans series PLC transistor source type 32-point output module, A1SY81 specifications, A1SY81 technical information! A1SY81 Mitsubishi PLC module parameter description: 32 points DC12/24V 0.1A, transistor source output, 2A/1 common terminal, response time 2ms, 32 points 1 common terminal, 37-pin D-Sub connector

Send Inquiry

Product Description

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported

A1SY81 Mitsubishi PLC module performance specifications

[Output points] 32 points

[Rated voltage] DC12/24V (DC10.2~30V)

[Maximum load current] 0.1A/1 point, 2A/1 common terminal

[Maximum inrush current] 0.4A 10ms or less

[Leakage current when OFF] 0.1mA or less

[Maximum voltage when ON] DC1V(TYP.) 0.1A, DC2.5V(MAX.) 0.1A

[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less

[Input response time] OFF-->ON 2ms or less; ON-->OFF 2ms or less

[Surge Limiter] Zener Diode

[Fuse] 3.2A

[Fuse capacity] 50A

[External power supply]

Voltage: DC12/24V (DC10.2~30.0V)

Current: 8mA

[Output method] 32 points 1 shared

[Insulation method] Photoelectric isolation

[External circuit connection method] 37-pin D-Sub connector

[Input and output occupied points] 32 points

[DC5V internal consumption current] 500mA

[A1SY81 overall dimensions (H*W*D)]:130*34.5*93.6mm

[A1SY81 weight] 0.23KG

A1SY81 price (face price) 3510, A1SY81 Mitsubishi Ans series PLC transistor source type 32-point output module, A1SY81 specifications, A1SY81 technical information!

A1SY81 Mitsubishi PLC module parameter description: 32 points DC12/24V 0.1A, transistor source output, 2A/1 common terminal, response time 2ms, 32 points 1 common terminal, 37-pin D-Sub connector
