Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

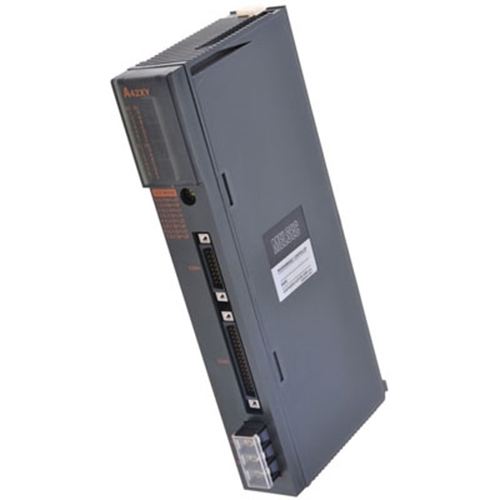

A42XY Mitsubishi A PLC input and output composite module product specifications
[Input form] 8*8 points dynamic scanning method
[Input points] 64 points
[Maximum points input simultaneously] 60%
[ON voltage/ON current] DC7V or more
[OFF voltage/OFF current] DC3V or less
[Input resistance] Approx. 2.4kΩ
[Input response time] OFF->ON, ON->OFF 16ms or less
[External power supply when inputting]
Voltage: DC12/24V (DC10.2~26.4V)
Current: 55mA TYP.
[Input isolation method] Photocoupler isolation
[Output form] 8*8 points dynamic scanning method
[Output points] 64 points
[Maximum output current] 50mA/1 point
[Maximum simultaneous output points] 60%
[Maximum voltage drop when ON] Source side 1.5V, sink side 1V
[Output response time] OFF->ON, ON->OFF 16ms or less
[External power supply during output]
Voltage: DC12/24V (DC10.2~26.4V)
Current: 180mA TYP.
[Output isolation method] Photocoupler isolation
[External wiring connection method] Input 16-pin connector, output 32-point connector
Suitable connectors: input FCN-361J016-AU, FCN-360C016-B; output FCN-361J032-AU, FCN-360C032-B
[Input and output occupied points] 64 points (I/O allocation: output 64 points)
[DC5V internal consumption current] 110mA
[Outline size H*W*D] 250*37.5*119
[Weight] 0.6kg
A42XY Mitsubishi A PLC input and output composite module price (face price) 6550, A42XY supplier. A42XY is a Mitsubishi A series composite input and output module that dynamically allocates I/O points.
A42XY parameter description:
Dynamic input: 64 points DC7V or above, response time 16ms, 16-pin connector
Dynamic output: 64 points sink type 50mA/1 point, response time 16ms, 32-pin connector
