Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

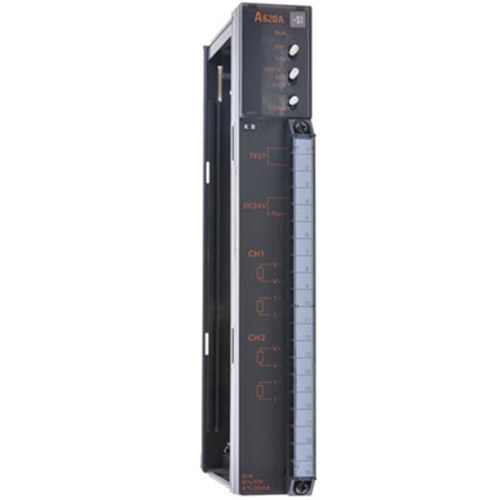

A62DA-S1 Mitsubishi A series analog output module product detailed specifications are as follows:
[Analog output points] 2 points (2 channels)
[Number input] 0~4000
[Analog output]
Voltage: DC0~0V~+10V (input resistance value: 500Ω~1MΩ)
Current: DC4~20mA (input resistance value: 0Ω~600Ω)
[Input and output characteristics]
┌───────┬────────┐
│ Analog output │ Analog input │
├───┬───┼────────┤
│Voltage │Current │ (Maximum resolution) │
├───┼───┼────────┤
│0~10V │ │0~4000(2.5mV) │
├───┼───┼────────┤
│0~5V │ │0~4000(1.25mV) │
├───┼───┼────────┤
│1~5V │ │0~4000(1mV) │
├───┼───┼────────┤
│ │4~20mA│0~4000(4μA) │
├───┼───┼────────┤
│ │0~20mA│0~4000(5μA) │
└───┴───┴────────┘
[Comprehensive accuracy (accuracy relative to maximum analog output value)] ±1.0%
[Maximum conversion speed] Within 15ms/2 channels
[Absolute maximum output] Voltage: ±12V Current: ±28mA
[Insulation method] Photocoupler insulation between input terminals and programmable controller, non-insulation between channels
[Occupied I/O points] 32 points (I/O allocation: special 32 points)
[Connection terminal] 20-point terminal block (M3 screw)
[Applicable wire size] 0.75~2mm square
[Applicable press-fit terminals] V1.25-3 V1.25-YS3A V2-S3 V2-YS3A
[Internal current consumption (DC5V)] 0.6A
[External power supply]
Voltage: DC 21.6~26.4V
Current consumption: 0.35A
Inrush current: 2.4A
[Outline dimensions H*W*D[mm]] 250*37.5*131
[Weight] 0.5kg
A62DA-S1 is a Mitsubishi A series PLC analog module, analog voltage/current output module. A62DA S1 price (face price) 10070, A62DA-S1 user manual, A62DA-S1 supplier.
A62DA-S1 Mitsubishi A series analog output module parameter description: D/A conversion module 2 channels, input 0~4000, output DC0~10V, DC4~20mA, conversion speed 15ms/2 channels, 20-point terminal block
