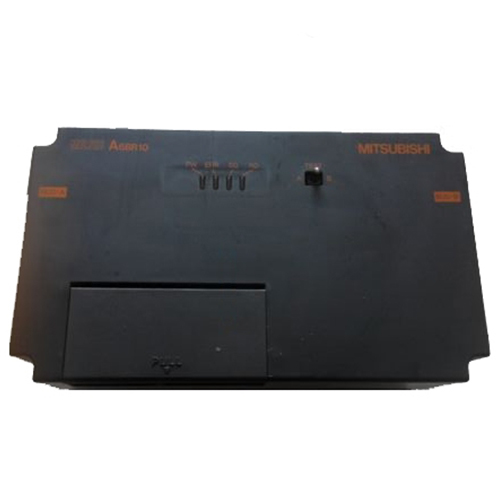

A6BR10 Mitsubishi A Series For Warder

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported



A6BR10 Mitsubishi A series transponder specifications (Mitsubishi coaxial cable transponder)

[Communication speed] 10Mbps

[Number of connections/1 network] Up to 4 units

[Extended distance/1 unit] 300m (3C-2V), 500m (5C-2V)

[Total extension distance] 1.5km (3C-2V), 2.5km (5C-2V)

[Maximum number of connected units] 32 units

[Abnormal continuous alarm output] ERR1 is ON when abnormal, ERR2 is ON when normal

Insulation method: non-insulated

Rated switching voltage/current: DC24V 2A (resistive load), AC240V 2A (cosφ=1)

Minimum switching load: DC5V 1mA

Maximum switching voltage: AC264V DC125V

Response time: 10ms or less when OFF->ON, 12ms or less when ON->OFF

Surge suppressor: None



[power supply]

Voltage: AC100~240V, -15/+10% (AC85~264V)

Frequency: 50/60Hz±5%

Maximum surface power: 21VA

Current consumption: 0.2A

Inrush current: 40A, within 8ms

Efficiency: more than 65%

Allowed instantaneous power outage time: 20ms

[Outline dimensions H*W*D] 100*170*80mm

[Weight] 0.5kg



A6BR10 Mitsubishi A series transponder, the difference between A6BR10 and A6BR10-DC is the input power supply. A6BR10 is AC power supply AC100~240V, while A6BR10-DC is DC power supply 24V type. Other specifications are the same.



A6BR10 parameter description: Mitsubishi A series MELSECNET/10 coaxial cable transponder, AC power supply AC100~240V
