Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

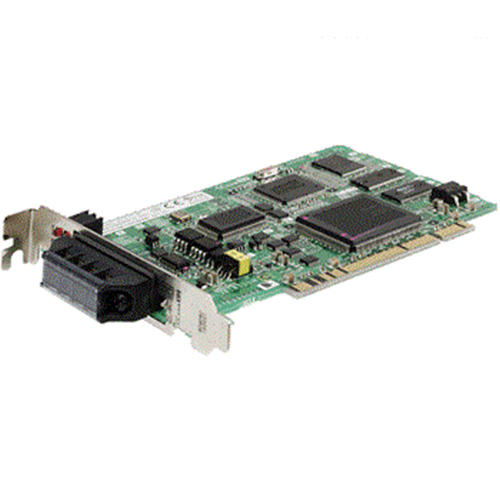

A80BDE-J61BT13 Mitsubishi PLC communication module product specifications:
[Transmission speed] 156kbps/625kbps/2.5Mbps/5Mbps/10Mbps (optional)
[Ver.1.10 version maximum transmission distance]
156kbps:1200m
625kbps:900m
2.5Mkbps:400m
5Mkbps:160m
10Mkbps:100m
[Category] CC-Link Ver.1 compatible local station
[Number of occupied games (local station)] 1 game or 4 games
[Maximum number of links per system]
CC-LINK Ver.1: Remote input and output (RX, RY): 2048 points Remote register (RWw): 256 points Remote register (RWr): 256 points
[Link points per site]
CC-LINK Ver.1: Remote input and output (RX, RY) 32 points, remote register (RWw) 4 points, remote register (RWr) 4 points
[Communication method] Broadcast polling
[Synchronization method] Frame synchronization method
[Encoding system] NRZI (non-return to zero inversion)
[Transmission format] HDLC compliant
[Transmission line form] Bus (RS-485)
[Error control method] CRC (X to the 16th power + X to the 12th power + X to the 5th power +1)
[connecting cables]
Version 1.10 is compatible with CC-Link dedicated cable
CC-Link dedicated cable (compatible with version 1.00)
CC-Link dedicated high-performance cable (compatible with version 1.00)
[Installation slot] PCI slot
[DC5V internal current consumption] 0.4A
[Weight] 0.16KG
A80BDE-J61BT13 Mitsubishi PLC communication module is now replaced by Q80BD-J61BT11N, A80BDE-J61BT13 price (face price) 12120
A80BDE-J61BT13 parameter description: Computer CC-LINK interface using PCI bus, local station
