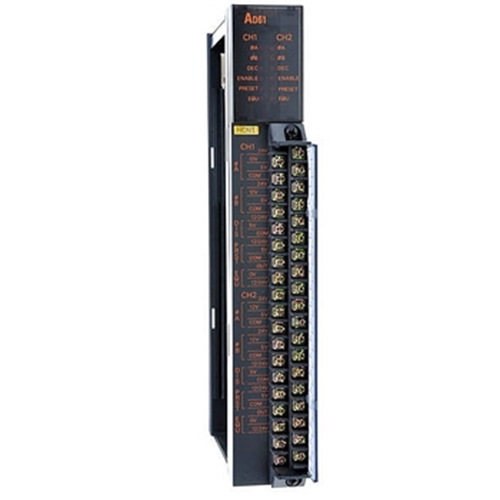

AD61S1 Mitsubishi A Series PLC High -speed Counter Module

AD61S1 Mitsubishi A series PLC high-speed counter module is a Mitsubishi A series PLC high-speed counter module. The price of AD61S1 is 7200 (face price) AD61S1 User Manual AD61S1 parameter description: 2-channel high-speed counter, 10KPPS/1 phase, 7KPPS/2 phases, counting input signal DC5/12/24V, external input DC5/12/24V, transistor output (open collector) DC12/24V 0.5A, 38 Click terminal block

Product Description

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported

AD61S1 Mitsubishi A series PLC high-speed counter module product specifications detailed description:

[Number of channels] 2 channels

[Counting input signal]

Phase: 1-phase input, 2-phase input

Signal level (φA, φB): DC5/12/24V　2~5mA

[counter]

Maximum counting speed: 10KPPS/1 phase, 7KPPS/2 phases

Counting range: 24-bit unsigned binary (0~16777215)

Type: UP/DOWN preset counter + ring counter function

Minimum counting pulse width (duty ratio 50%): 1-phase input force 100μs (ON/OFF each 50μs), 2-phase input force 142μs (ON/OFF each 71μs)

[Size comparison]

Comparison range: 24-bit unsigned binary

Comparison result: setting value<count value, setting value=count value, setting value>count value

[External input]

Preset: DC12/24V | 3/6mA, DC5V | 5mA

Counting disabled: DC12/24V | 3/6mA, DC5V | 5mA

[External coincidence output] Transistor (open collector) output DC12/24V　0.5A

[I/O occupied points] 32 points

[Internal current consumption (DC5V)] 0.3A

[Outline dimensions H*W*D[mm]] 250*37.5*131

[Weight] 0.50kg

AD61S1 Mitsubishi A series PLC high-speed counter module is a Mitsubishi A series PLC high-speed counter module. The price of AD61S1 is 7200 (face price) AD61S1 User Manual

AD61S1 parameter description: 2-channel high-speed counter, 10KPPS/1 phase, 7KPPS/2 phases, counting input signal DC5/12/24V, external input DC5/12/24V, transistor output (open collector) DC12/24V 0.5A, 38 Click terminal block
