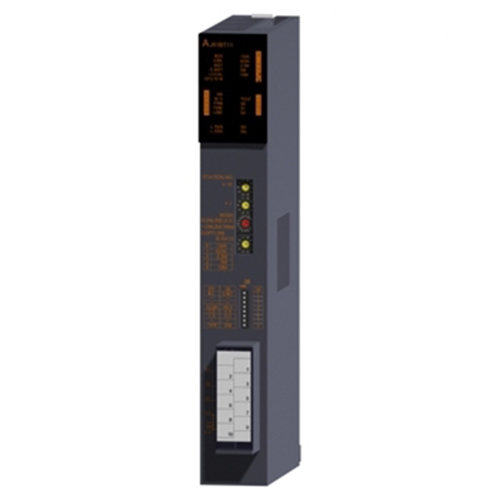

AJ61BT11 Mitsubishi A series master station/local station module product specifications
[Transmission speed] You can select from 156kbps/625kbps/2.5Mbps/5Mbps/10Mbps.
[Maximum total cable extension distance (maximum transmission distance)]
1200m at 156kbps, 900m at 625kbps, 400m at 2.5Mbps, 160m at 5Mbps, 100m at 10Mbps
[Maximum number of connections (master station)] 64
[Number of occupied stations (local station)] 1~4 stations
[Maximum number of link points per system]
Remote input and output (RX, RY): 2048 points
Remote register (RWw): 256 points
Remote register (RWr): 256 points
[Link points per site]
Remote input and output (RX, RY): 32 points (30 points for local station)
Remote register (RWw): 4 points
Remote register (RWr): 4 points
[Communication method] Broadcast polling method
[Synchronization method] Frame synchronization method
[Encoding method] NRZI method
[Transmission path format] Bus (RS-485)
[Transmission format] Based on HDLC protocol
[Error control method] CRC (X to the 16th power + X to the 12th power + X to the 5th power + 1)
[Connection cable] Ver.1.10 compatible CC-Link dedicated cable, CC-Link dedicated cable, CC-Link dedicated high-efficiency cable
[Number of occupied input and output points] 32 points (I/O allocation: intelligent 32 points)
[DC5V internal current consumption] 0.45A
[Outline size H*W*D] 250*37.5*129
[Weight] 0.4kg
AJ61BT11 Mitsubishi A series master station/local station module, AJ61BT11 specifications
AJ61BT11 parameter description: Mitsubishi A series master station/local station module for ACPU
