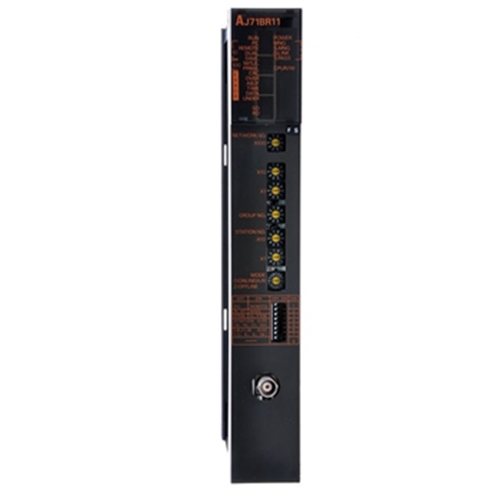

AJ71BR11 Mitsubishi PLC Module

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported



AJ71BR11 Mitsubishi PLC module product specifications:

[Maximum number of link points per system] RX/RY 8192 points, RWw 8192 points, RWr 8192 points

[Maximum number of link points per site]

Inter-PC network: ≦2000 bytes

Remote I/O network: master station->remote I/O ≦1600 bytes, remote I/O->master station ≦1600 bytes

[Communication speed] 10Mbps

[Maximum number of connected sites]: PC network 32, remote I/O 33

[Total extended distance of a network]

3C-2V: 300m

5C-2V/5C-FB: 500m

Using repeater unit (A6BR10, A6BR10-DC), the maximum possible extension is 2.5km.

[Communication cable] 3C-2V/5C-2V, 5C-FB

[Applicable connectors] Connector plug for 3C-2V, connector plug for 5C-2V, connector plug for 5C-FB

[Maximum number of networks] 255

[Maximum number of groups] 9

[Communication method] Single bus

[Synchronization method] Frame synchronization

[Transmission format] HDLC compliant

[Number of occupied I/O points] 32 points

[DC5V DC internal current consumption] 0.80A

[Outline dimensions H*W*D] 250*37.5*114mm

[Weight] 0.45



AJ71BR11 Mitsubishi PLC module parameter description: MELSECNET/10 master station/local station, coaxial cable link (AJ71BR11 price - face price is 14490).
