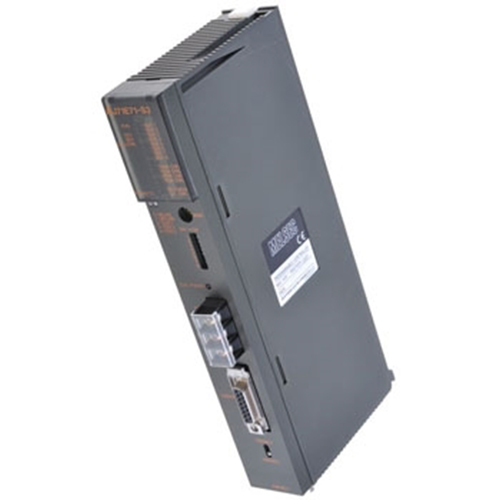

AJ71E71-S3 Mitsubishi A Series Ethernet Interface Module

Brand: MITSUBISHI/Japan Mitsubishi

Origin: Category Imported



AJ71E71-S3 Mitsubishi A series Ethernet interface module product specifications

[Transmission specifications]

Transmission category: 10BASE5/10BASE2

Data transfer speed: 10Mbps

Transmission method: baseband

Maximum distance between nodes: 2500m(10BASE5) / 925m(10BASE2)

Maximum segment length: 500m (10BASE5) / 185m (10BASE2)

Maximum number of nodes/connections: 100 nodes/segment (10BASE5), 30 nodes/segment (10BASE2)

Minimum node spacing: 2.5 meters (10BASE5), 0.5m (10BASE2)

[Memory for transmitting and receiving data storage]

Fixed buffer: 1k words*8

Buffer for random access: 12k words*1

[Number of remote nodes that can be passed in a single initial process] Up to 20

[Occupied I/O points] 32 points/1 slot (I/O allocation: special 32 points)

[DC5V internal voltage consumption] 0.26A(10BASE5) / 0.48A(10BASE2)

[Connector] Human-machine interface RJ-45

[Connection Cable] Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) rated Category 3, 4 or 5

[Outline dimensions H*W*D] 250*37.5*119mm

[Weight] 0.52kg



AJ71E71-S3 Mitsubishi A series Ethernet interface module price, AJ71E71-S3 parameter specifications, AJ71E71-S3 technical information!

AJ71E71-S3 parameters: Ethernet interface module, 10BASE5/10BASE2
