Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

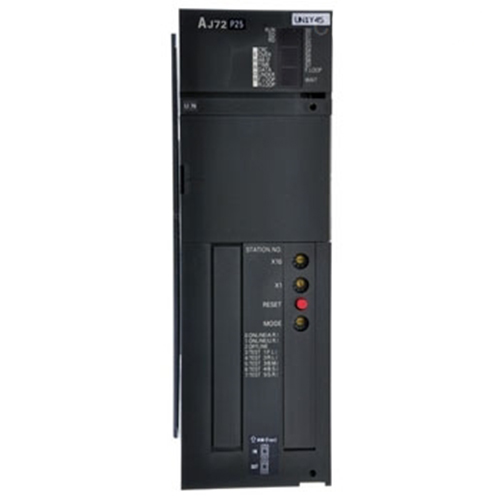

AJ72P25 Mitsubishi MELSECNET data link module, AJ72P25 price (face price) 14560
AJ72P25 Mitsubishi MELSECNET data link module parameter description: MELSECNET remote I/O controller, optical fiber link SI/H-PCF optical cable, double circulation
Mitsubishi MELSECNET data link module AJ72P25 product specifications:
[Maximum link points per station] Maximum number of output points of the CPU module
[MELSECNET mode]
The maximum number of links pointed to by a system: link relay [B] 1024 points 128 bytes, link register [W] 1024 points 2048 bytes
Maximum number of link points per station: 512 bytes for remote I/O station, 512 points for input and output
[MELSECNETⅡmixed mode]
Maximum number of links to a system:
Link relay [B]: 4096 points, 512 bytes
Link register [W]: 4096 points, 8192 bytes
Maximum number of link points per station: 512 bytes for remote I/O station, 512 points for input and output
[Communication speed] 1.25MBPS
[Communication method] Half-duplex serial method
[Synchronization method] Frame synchronization
[Transmission line] Double loop
[Total extended distance] Maximum 10km (1km between stations)
[Number of station connections] Maximum 65 stations (main station: 1, total of local station and remote I/O station: 64)
[Modulation method] CMI method
[Transmission format] HDLC standard (frame format)
[Connection cable] SI/H-PCF optical fiber cable
[Connector] 32-core optical connector plug F06/F08 (JIS C5975/5977 standard)
[DC5V internal current consumption] 0.5A
[Dimensions (H*W*D)] 250*79.5*124
[Weight] 0.77kg
