Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported
AY41P Mitsubishi A series PLC performance specifications:
[Output points] 32 points
[Rated load voltage] DC12V/24V
[Voltage usage range] DC10.2~40V
[Maximum load current] 0.1A/1 point, 1.6A/1 common terminal
[Maximum inrush current] 0.38A 5ms or less
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC2.5V 0.1A, DC1.75V 5mA, DC1.7V 1mA
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Clamping diode
[Protection function] Yes
[Protection function detection display] Yes
[Protection function reset method] Automatic reset
[External power supply voltage] DC12/24V (DC10.8~26.4V)
[External power supply current] 30mA
[Common end arrangement] 16 points 1 common end
[Insulation method] Photocoupler isolation
[External connection] 38 points-terminal block (M3 screw)
[Number of occupied input and output points] 32 points (I/O allocation: output 32 points)
[Internal current consumption (DC5V)] 230mA
[AY41P overall size H*W*D] 250*37.5*131mm
[AY41P weight] 0.44KG

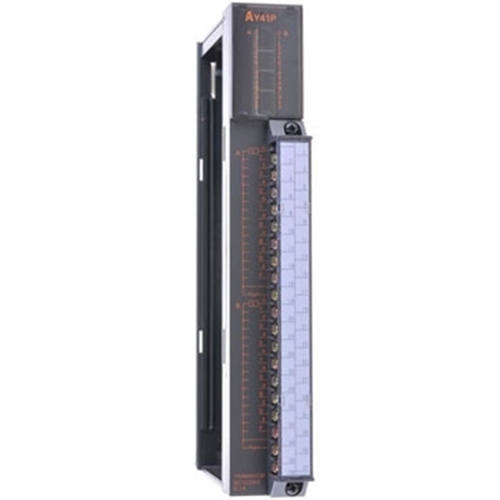

AY41P is a 32-point transistor input-sink output module of Mitsubishi A series PLC! AY41P price (face price) 3980, AY41P function description, AY41P parameter description.
AY41P Mitsubishi A series PLC parameter description: with short circuit protection, 32-point transistor output, DC12V/24V, 0.1A/1 point, 1.6A/1 common terminal, response time 2ms, 16 points 1 common terminal, sink output, 38 points Terminal block
