Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

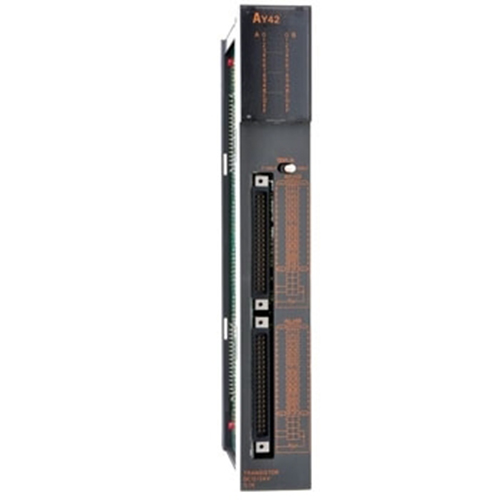

AY42-S1 Mitsubishi A series output module performance specifications:
[Output points] 64 points
[Rated load voltage] DC12V/24V
[Voltage usage range] DC10.2~40V
[Maximum load current] 0.1A/1 point, 2A/1 common terminal
[Maximum inrush current] 0.4A
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC2.5V 0.1A, DC1.75V 5mA, DC1.7V 1mA
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Clamping diode
[External power supply voltage] DC12/24V (DC10.2~40V)
[External supply power current] 40mA
[Common end arrangement] 32 points 1 common end
[Insulation method] Photocoupler isolation
[External connection] 40-pin connector*2 rows
[Number of occupied input and output points] 64 points (I/O allocation: output 64 points)
[Internal current consumption (DC5V)] 340mA
[AY42-S1 overall size H*W*D] 250*37.5*106mm
[AY42-S1 weight] 0.5KG
AY42-S1 is a Mitsubishi A series PLC 32-point transistor input-sink output module with short-circuit protection! AY42-S1 price (face price) 5670, AY42-S2 function description, AY42-S3 parameter description, AY42-S4 specifications.
AY42-S1 Mitsubishi A series output module parameter description: 64 points transistor output, DC12V/24V, 0.1A/1 point, 2A/1 common terminal, response time 2ms, 32 points 1 common terminal, sink output, 40-pin connector *2 rows
