Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

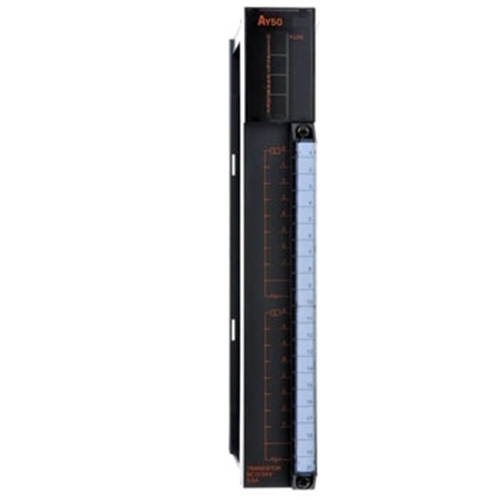

AY50 Mitsubishi A series 16-point transistor input-sink output module performance specifications:
[Output points] 16 points
[Rated load voltage] DC12V/24V
[Voltage usage range] DC10.2~30V
[Maximum load current] 0.5A/1 point 2A/1 common terminal
[Maximum inrush current] 7A 10ms or less, 3.5A 100ms or less
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC0.9V(TYP.) 0.5A, DC1.5V(MAX.) 0.5A
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Varistor (52~62V)
[Fuse] Quick-blow fuse 2A (1 common terminal)
[Fuse disconnection indication] Yes
[Protection function] None
[Common terminal arrangement] 8 o'clock 1 common terminal
[Insulation method] Photocoupler isolation
[External connection] 20 points-terminal block (M3 screw)
[Number of occupied input and output points] 16 points (I/O allocation: output 16 points)
[Internal current consumption (DC5V)] 120mA
[AY50 overall size H*W*D] 250*37.5*100mm
[AY50 weight] 0.42KG
AY50 Mitsubishi A series 16-point transistor output module is a 16-point transistor output module of Mitsubishi A series PLC! AY50 price (face price) 3,400, AY50 function description, AY50 parameter description.
AY50 parameter description: 16 points DC12/24V transistor sink output 0.5A/1 point, 2A/1 common terminal, response time 2ms, 8 points 1 common terminal, sink output, 20 points terminal block
