Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

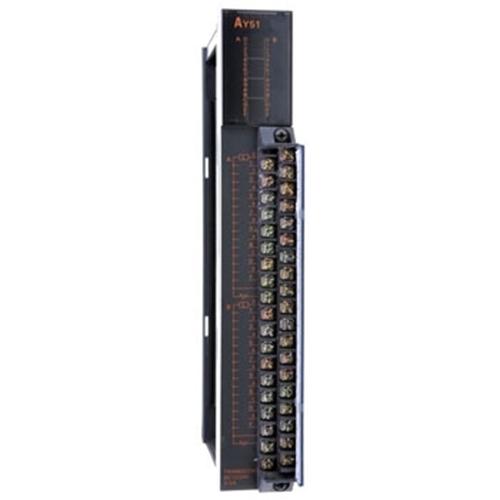

AY51 Mitsubishi Ans series PLC output module performance specifications:
[Output points] 32 points
[Rated load voltage] DC12V/24V
[Voltage usage range] DC10.2~30V
[Maximum load current] 0.5A/1 point 4A/1 common terminal
[Maximum inrush current] 0.4A 10ms or less
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC0.9V(TYP.) 0.5A, DC1.5V(MAX.) 0.5A
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Varistor (52~62V)
[Fuse] None
[Protection function] None
[External power supply]
Voltage: DC12/24V (DC10.2~30.0V)
Current: 50mA (TYP. DC24V, each common terminal)
[Common end arrangement] 16 points 1 common end
[Insulation method] Photocoupler isolation
[External connection] 38 points-terminal block (M3 screw)
[Number of occupied input and output points] 32 points (I/O allocation: output 32 points)
[Internal current consumption (DC5V)] 230mA
[AY51 overall size H*W*D] 250*37.5*131mm
[AY51 weight] 0.53KG
AY51 price (face price) 4450, AY51 function description, AY51 parameter description. AY51 is a 32-point transistor input-sink output module for Mitsubishi A series PLC!
AY51 Mitsubishi Ans series PLC output module parameter description: 32 points DC12/24V transistor sink output 0.5A/1 point, 4A/1 common terminal, response time 2ms, 16 points 1 common terminal, sink output, 38 points terminal block
