Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

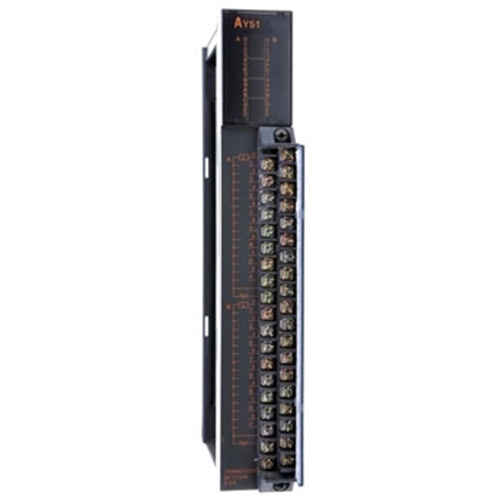

AY51-S1 Mitsubishi A series PLC output module parameter description: 32-point DC12/24V transistor sink output 0.3A/1 point, 2A/1 common terminal, response time 2ms, 16 points 1 common terminal, 38-point terminal block
Mitsubishi A series PLC output module AY51-S1 performance specifications:
[Output points] 32 points
[Rated load voltage] DC12V/24V
[Voltage usage range] DC10.2~30V
[Maximum load current] 0.3A/1 point 2A/1 common terminal
[Maximum inrush current] 3A 10ms or less
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC0.9V(TYP.) 0.3A, DC1.5V(MAX.) 0.3A
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Transistor with built-in Zener diode
[Fuse] Quick-blow fuse 2A (1 common terminal)
[Fuse disconnection indication] Yes
[Protection function] None
[Common end arrangement] 16 points 1 common end
[Insulation method] Photocoupler isolation
[External connection] 38 points-terminal block (M3 screw)
[Number of occupied input and output points] 32 points (I/O allocation: output 32 points)
[Internal current consumption (DC5V)] 310mA
[AY51-S1 overall size H*W*D] 250*37.5*131mm
[AY51-S1 weight] 0.55KG
AY51-S1 Mitsubishi A series PLC output module (face price) 4860, AY51-S1 function description, AY51-S1 parameter description. AY51-S1 is a 32-point transistor sink type 3A/1-point high-speed output module of Mitsubishi A series PLC!
