Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported
AY60E Mitsubishi A series 16-point transistor output module performance specifications:
[Output points] 16 points
[Rated load voltage] DC24V (12/48V)
[Voltage usage range] DC21.6~26.4V (DC10.2~56V)
[Maximum load current] 2A/1 point 5A/1 common terminal
[Maximum inrush current] 8A 10ms or less, 4A 100ms or less
[Leakage current when OFF] 0.1mA or less
[Maximum voltage when ON] DC1.5V 2A
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Varistor (108~132V)
[Fuse] Quick-blow fuse 3.2A (1 common terminal) MP-32
[Fuse disconnection indication] Yes
[Protection function] None
[Common terminal arrangement] 8 o'clock 1 common terminal
[Insulation method] Photocoupler isolation
[External connection] 20 points-terminal block (M3 screw)
[Number of occupied input and output points] 16 points (I/O allocation: output 16 points)
[Internal current consumption (DC5V)] 120mA
[AY60E overall dimensions H*W*D] 250*37.5*100mm
[AY60E weight] 0.64KG

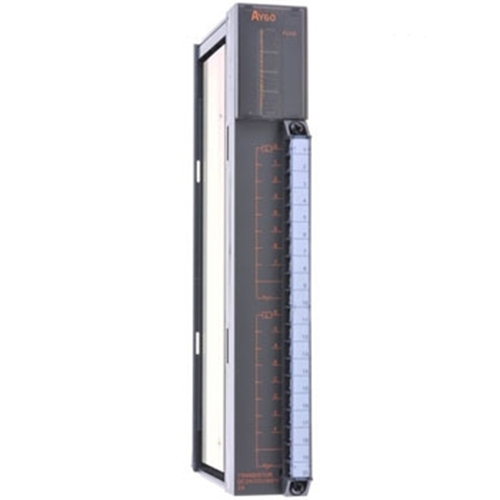

AY60E Mitsubishi A series 16-point transistor source output module. The difference between AY60E and AY60 is that AY60E is a source type and AY60 is a sink type!
AY60E parameter description: Source type 16-point DC12V (12/48V) transistor output 2A/1 point, 5A/1 common terminal, response time 2ms, 8 points 1 common terminal, sink output, 20-point terminal block
