Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

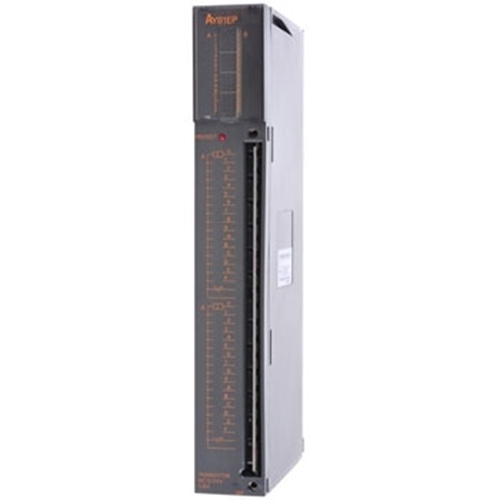

AY80 Mitsubishi A series PLC output module performance specifications:
[Output points] 16 points
[Rated load voltage] DC12/24V
[Use rated load voltage range] DC10.2~30V
[Maximum load current] 0.5A/1 point, 2A/1 common terminal
[Maximum inrush current] 7A 10ms or less, 3.5A 100ms or less
[Leakage current when OFF] 0.1mA
[Maximum voltage drop when ON] DC1.5V(TYP.) 0.5A
[Response time] OFF->ON 2ms or less, ON->OFF 2ms or less
[Surge suppressor] Varistor (52V~62V)
[Fuse] Quick-blow fuse 2A (1 common terminal shared) MP-20
[Fuse disconnection display] Yes
[Protection function] None
[External power supply voltage] DC12/24V (DC10.2~30V)
[External supply power current] 60mA
[Common terminal arrangement] 8 o'clock 1 common terminal
[Insulation method] Photocoupler isolation
[External connection] 20 points-terminal block (M3 screw)
[Number of occupied input and output points] 16 points (I/O allocation: output 32 points)
[Internal current consumption (DC5V)] 120mA
[AY80 overall size H*W*D] 250*37.5*100mm
[AY80 weight] 0.42KG
AY80 is a 32-point transistor output module for Mitsubishi A series PLC! AY80 price (face price) 3890, AY80 function description, AY80 parameter description.
AY80 Mitsubishi A series PLC output module parameter description: 16-point transistor output, DC12V/24V 0.5A/1 point, 2A/1 common terminal, response time 2ms, 8 points 1 common terminal, source type, 20-point terminal block
