Brand: MITSUBISHI/Japan Mitsubishi
Origin: Category Imported

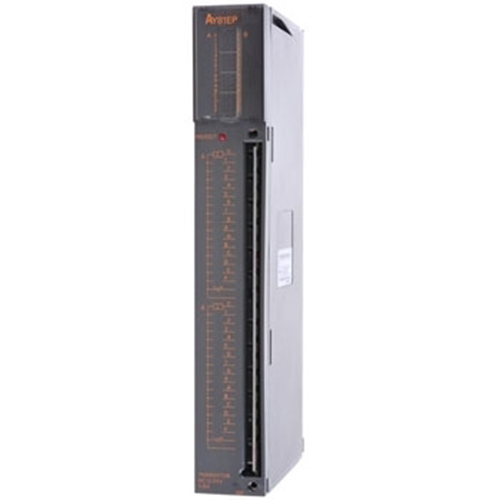

AY82EP 64-point Mitsubishi A series PLC output module performance specifications:
[Output points] 64 points
[Rated load voltage] DC12/24V
[Use rated load voltage range] DC10.2~26.4V
[Maximum load current] 0.1A/1 point, 0.04A/1 point (60%ON, 55℃)
[Maximum inrush current] No limit (short circuit protection)
[Leakage current when OFF] 0.1mA
[Maximum voltage drop when ON] DC2.5V(TYP.) 0.1A, DC3.5V(MAX.) 0.8A
[Response time] OFF->ON 0.5ms or less, ON->OFF 1.5ms or less
[Surge suppressor] Surge absorber
[Fuse] None
[Protection function] Yes
[Protection function detection display] Yes
[Protection function reset method] Automatic reset (overheating protection function reset)
[External power supply voltage] DC12/24V (DC10.2~26.4V)
[External power supply current] 50mA
[Common end arrangement] 32 points 1 common end
[Insulation method] Photocoupler isolation
[External connection] 37-pin D-sub connector
[Number of occupied input and output points] 64 points (I/O allocation: output 64 points)
[Internal current consumption (DC5V)] 230mA
[AY82EP overall size H*W*D] 250*37.5*106mm
[AY82EP weight] 0.58KG
AY82EP price (face price) 7200, AY82EP function description, AY82EP parameter description. AY82EP is a 64-point transistor output module for Mitsubishi A series PLC!
AY82EP 64-point Mitsubishi A series PLC output module parameter description: 64-point transistor output, DC12V/24V 0.1A/1 point, response time 1.5ms, 32 points 1 common terminal, source type, 37-pin D-sub connector
