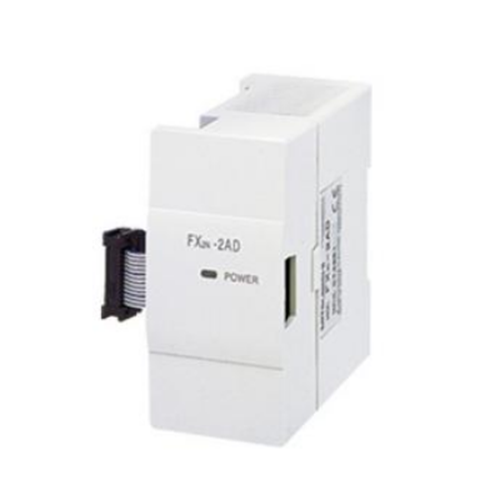

Mitsubishi Analog Input Module FX2N-2AD
Product Overview:
The Mitsubishi FX2N-2AD is a precision analog input module designed for use within the Mitsubishi FX2N PLC series. This specialized module provides critical analog input functionality, converting analog signals (both voltage and current) into 12-bit digital values for integration with programmable controllers. Ideal for a range of automation and control applications, the FX2N-2AD supports flexible input configurations and is a vital component for enhancing Mitsubishi's automation platforms.
Technical Specifications:
- Model: FX2N-2AD
- Type: Analog Input Module
- Channels: 2
- Input Types: Voltage (0-10V DC, 0-5V DC) or Current (4-20mA)
- Resolution: 12-bit
- Conversion Characteristics: Adjustable
Physical Dimensions:
- Design: Embedded module
- Color: White
- Rated Voltage: 24V DC
Detailed Features:
- Input Flexibility: Configurable for either voltage or current inputs. This flexibility allows the module to be used in a wide variety of applications, accommodating different sensor outputs and signal types.
- Conversion and Accuracy: Converts analog inputs into precise 12-bit digital values, ensuring accurate representation of the input signals.
- I/O Allocation: Occupies 8 I/O points, which can be configured as either inputs or outputs based on the application needs.
- Data Communication: Utilizes FROM/TO instructions to facilitate data transfer between the module and the PLC, ensuring seamless integration with the control system.
Connection and Compatibility:
- Compatible Controllers: FX2N-2AD can be connected to FX0N, FX2N, and FX2NC series programmable controllers.
- Connection Limits:
- FX0N Series: Up to 4 FX2N-2AD modules per master unit with source expansion units.
- FX2N Series: Up to 8 FX2N-2AD modules per master unit with source expansion units.
- FX2NC Series: Up to 4 FX2N-2AD modules regardless of the master unit’s I/O points.
- FX0N Series: Up to 2 FX2N-2AD modules regardless of the master unit and active expansion unit’s I/O points.
Power Requirements:
- Power Supply: 24V DC
- Current Consumption: Varies depending on the number of connected modules and system configuration.
Applications:
- Automation Systems: Suitable for applications requiring analog signal processing and conversion within Mitsubishi’s automation and control systems.
- Process Control: Ideal for industries where accurate analog measurements are critical, such as manufacturing, chemical processing, and energy management.
Summary:
The Mitsubishi FX2N-2AD analog input module is an essential component for integrating analog signals into the FX2N PLC series, offering robust functionality and flexibility for a variety of industrial applications. With its precise 12-bit conversion and configurable input options, it is designed to meet the demands of modern automation systems while providing reliable performance and ease of integration.
