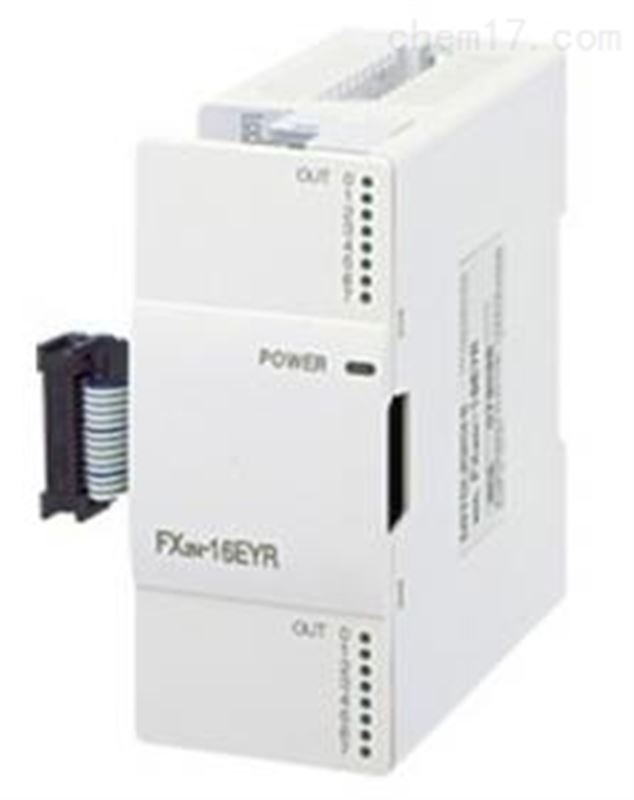

Performance specifications
|
Applicable sequence
|
FX1N , FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC
|
|
"Connector Type Serializer Connected to About>
|
|
FX 1 NC, FX 2 CNC Access, FX 2 NC-CNV-IF are necessary.
|
|
Connection of FX3GC , FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is necessary.
|
|
quality
|
0.3kg
|
|
General specifications
|
ambient temperature
|
0 ~ 55 ℃ ·····When operating - 25 ~ 75℃・・・・When saving
|
|
Relative humidity
|
5 ~ 95% RH (no condensation allowed)・・・・・When operating
|
|
Vibration resistant
|
When installing on DIN rail
|
< Number of cycles: 10~57 Hz> Piece amplitude: 0.035 mm 10 times in each direction of X, Y, and Z (a total of 80 minutes) each
|
|
Judgment criteria, based on IEC 61131-2
|
|
When installing on DIN rail
|
< Number of cycles: 57～150 Hz>Acceleration: 4.9 m/s 2 10 times in each direction of X, Y and Z (80 minutes in total)
|
|
Judgment criteria, based on IEC 61131-2
|
|
When installing directly
|
< Number of cycles: 10 ~ 57 Hz> Piece amplitude: 0.075 mm 10 times in each direction of X, Y, Z (a total of 80 minutes) each
|
|
Judgment criteria, based on IEC 61131-2
|
|
When installing directly
|
< Number of cycles: 57～150 Hz>Acceleration: 9.8 m/s 2 10 times in each direction of X, Y and Z (80 minutes in total)
|
|
Judgment criteria, based on IEC 61131-2
|
|
Shock proof
|
147 m / s2 , action time 11 ms, sine half-wave pulse 3 times in each direction of X, Y, Z
|
|
Judgment criteria, based on IEC 61131-2
|
|
Noise resistant
|
Noise voltage, Vp 10,000-p, noise width 1μs, rising to one, period 30 ~ 100 Hz of the noise simulator
|
|
Withstand voltage
|
Between the output terminal (torch relay) and ground terminal of the additional output block: AC 1500 V for 1 minute
|
|
Insulation resistance
|
Between the output terminal (torch transmission) of the additional output block and the ground terminal: DC 500 V high resistance meter above 5 MΩ
|
|
Atmosphere of use
|
Corrosive, flammable gases, but conductive dust (dust) are very unsafe
|
|
Use height
|
Below 2000 meters
|
|
It cannot be used in a pressurized environment above atmospheric pressure. Possibility of malfunction.
|
|
Power Specifications
|
Rated voltage
|
Powering the sequence from within
|
|
Output specifications
|
Output score
|
16 o'clock
|
|
Output connection shape
|
Vertical terminal block (M) 3 screws
|
|
Output type/form
|
relay
|
|
External power supply
|
AC 250 V DC 30 V or less
|
|
maximum load
|
Resistive load
|
2 A / 1 point
|
|
Please refer to the following for the total load current of a resistive load.
|
|
and output 4 points/Eng: 8 A or less
|
|
and output 8 points/Eng: 8 A or less
|
|
inductive load
|
80VA
|
|
minimum load
|
DC5V 2mA (reference value)
|
|
Response time
|
Discount→ON
|
about 10 ms
|
|
ON →Discount
|
about 10 ms
|
|
circuit insulation
|
mechanical insulation
|
|
Output action representation
|
When the relay coil is energized, the LED on the panel lights up.
|
|
Output circuit structure
|
|
