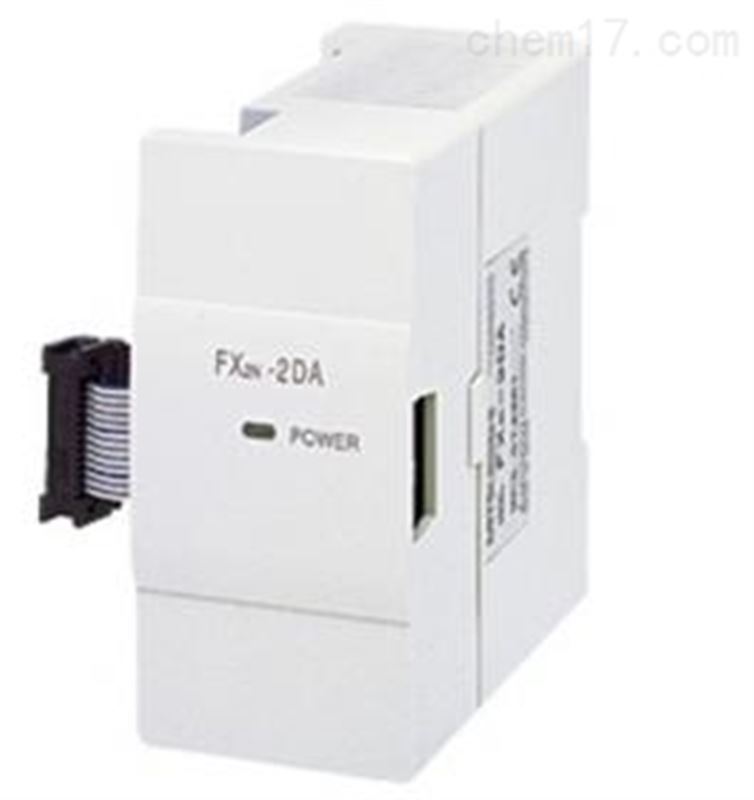

Mitsubishi module FX2N-2DA special function module
● The FX2N-2DA type analog output module ( hereinafter referred to as FX2N-2DA ) is used to convert 12 -bit digital values into 2 -point analog outputs ( voltage output and current output ). And input them to the programmable controller ( (hereinafter referred to as PLC ) .
● FX2N-2DA can be connected to programmable controllers of FX0N , FX2N and FX2NC series .
1) Depending on the wiring method , the analog output can be selected between voltage output or current output .
At this time , assume Set to two-channel common analog output .
2) The acceptable output of the two analog output channels is 0 to 10VDC, 0 to 5VDC, or 4to 20mA. ( Mixed use of voltage output / current output is also possible )
3) Resolution is 2.5mV (0 to 10V DC) and 4μA (4 to 20mA)
4) Digital to analog conversion characteristics can be adjusted.
5) This module occupies 8 I/O points , which can be assigned as input or output .
6) Use FROM/TO instructions for data transmission with PLC
| Mitsubishi module FX2N-2DA [FX2N series special function unit] |
| model |
Function Description |
face price |
| FX2N-2AD |
2-channel A/D module |
1740 |
| FX2N-4AD |
4-channel A/D module |
2310 |
| FX2N-8AD |
8-channel A/D module |
7630 |
| FX2N-2DA |
2-channel D/A module |
2100 |
| FX2N-4DA |
4-channel D/A module |
3270 |
| FX2N-5A |
4 input/1 output analog module |
3400 |
| FX2N-4AD-TC |
4-channel temperature module |
3270 |
| FX2N-4AD-PT |
4-channel temperature module |
3270 |
| FX2N-2LC |
2-channel temperature module |
4450 |
| FX2N-1HC |
1-channel high-speed counter module |
3170 |
| FX2N-1PG-E |
1-channel high-speed output module (100kHz) |
4270 |
| FX2N-10PG |
1-channel high-speed output module (1MHz) |
5250 |
| FX2N-1RM-E-SET |
Programmable cam module |
8770 |
| FX2N-10GM |
1-axis positioning control unit |
4630 |
| FX2N-20GM |
2-axis positioning control unit |
8860 |
| FX2N-232IF |
RS232 serial communication module, 1 channel |
4480 |
| FX2N-64CL-M |
CC LINK/LT main unit |
2560 |
| FX2N-16CCL-M |
computer link main module |
2700 |
| FX2N-32CCL |
computer link interface module |
2490 |
| FX2N-20PSU |
Extended power supply |
1670 |
| FX2N-CNV-IF |
Extension cable converter |
400 |
