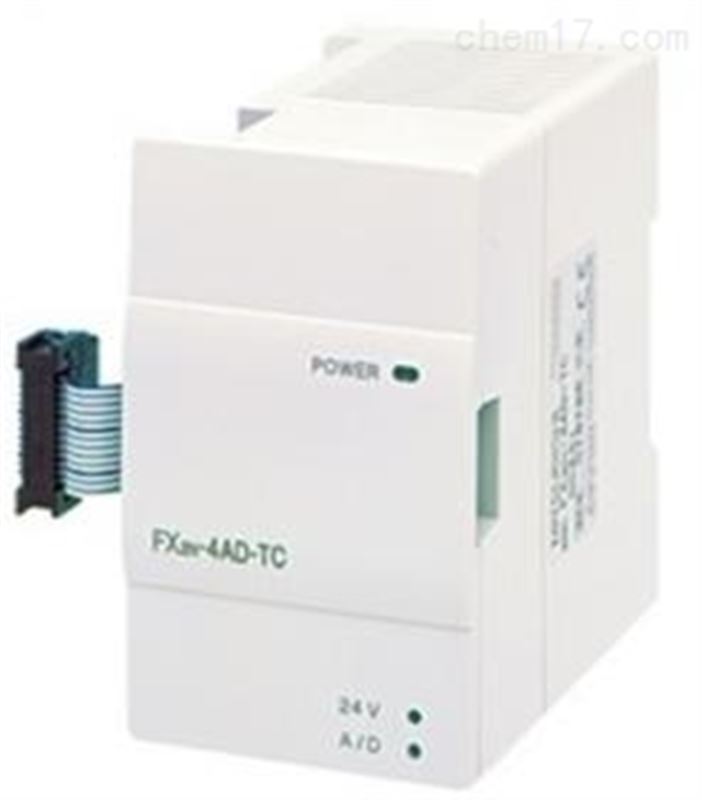

Mitsubishi module FX2N-4AD-TC

Mitsubishi FX2n-4AD is an FX2n series PLC analog input module launched by Mitsubishi Electric Company. It has four channels, CH1~CH4, each channel can perform AD conversion, the resolution is 12 bits, and the acquisition signal voltage is -10V~ +10V, resolution 5mV.

Send Inquiry

Product Description

Brand MITSUBISHI/Japan Mitsubishi Origin Category Imported

FX2N-4AD-TC: 4-channel temperature module



Performance indicators of Mitsubishi module FX2N-4AD-TC

1. Power supply: The external power supply of FX2n-4AD is 24V, the fluctuation shall not exceed 2.4V, and the current is 55mA.

2. Conversion characteristics

3. Performance description of analog module

(1) 4 input points can be used simultaneously.​

(2) The input voltage is -10V~+10V. If the absolute value exceeds 15V, the unit may be damaged.

(3) The 12-bit conversion result is stored in two's complement form. The maximum value is 2047 and the minimum value is -2048.

(4) The resolution voltage is 1/2000, 5mV, and the current is 1/1000, 20uA. ​

(5) Overall accuracy 1%.

(6) Conversion speed 6~15ms.



Mitsubishi module FX2N-4AD-TC:

Mitsubishi FX2n-4AD is an FX2n series PLC analog input module launched by Mitsubishi Electric Company. It has four channels, CH1~CH4, each channel can perform AD conversion, the resolution is 12 bits, and the acquisition signal voltage is -10V~ +10V, resolution 5mV. When the current is input, it is 4~20mA or -20~20mA, and the resolution is 20uA. FX2n-4AD has 32 16-bit buffer registers (BMF) internally for exchanging data with the host. FX2n-4AD occupies 8 points of the FX2n expansion bus and consumes 5V, 30mA power. Commonly used analog input modules of FX2N include FX2N-2AD, FX2N-4AD, FX2N-8AD analog input module and temperature sensor input module. Edit this section to introduce the performance of FX2n-4AD circuit wiring.



FX2n-4AD is connected to the PLC host through an extension cable, and the external connections of the four channels vary according to the external input voltage or current. ​

The following points should be noted:

1. If the external input is a voltage signal, connect the + and - poles of the signal to module V+ and VI- respectively.

2. If the external input is a current signal, you need to connect V+ and I+. ​

3. If there are too many interference signals, connect the FG terminal of the system chassis to the ground terminal of FX2n-4AD.
