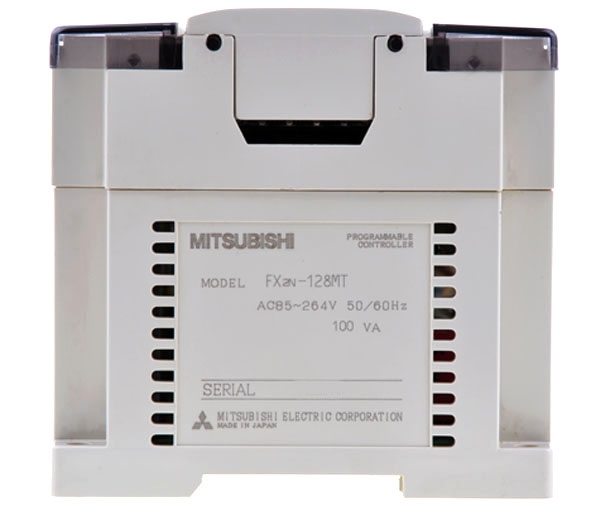

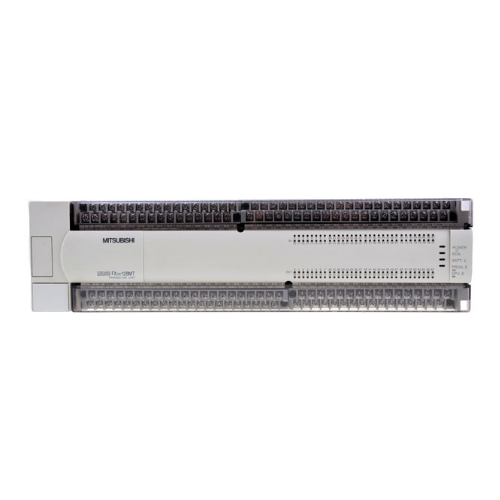

Mitsubishi PLC FX2N-128MT-001
Product Overview
The Mitsubishi PLC FX2N-128MT-001 is a prominent model from Mitsubishi Electric, known for its versatility and high performance. It supports configurations ranging from 16 to 128 points and can be expanded with modules as small as 8 points. The FX2N-128MT-001 features an internal program capacity of 800 steps, expandable up to 16K steps, catering to a broad spectrum of industrial automation requirements.
Key Features
- Flexible Configuration: The FX2N-128MT-001 supports various configurations from 16 to 128 points, with the capability to expand using additional I/O modules.
- Large Program Capacity: Equipped with 800-step RAM, which can be expanded up to 16K steps, suitable for extensive control applications.
- Multiple Power Options: The FX2N-128MT-001 supports an input range of AC100~240V, adaptable to different power environments.
- High Performance Response: Provides rapid response times, ideal for high-speed and precision control tasks.
Technical Specifications
Dimensions
Input Specifications
- Number of Inputs: 64
- Input Signal Voltage: DC24V ±10%
- Input Signal Current: 7mA/DC24V (5mA/DC24V for X010 and later)
- Input ON Current: 4.5mA or above (3.5mA/DC24V for X010 and later)
- Input OFF Current: 1.5mA or below
- Input Response Time: Approximately 10ms
- Input Signal Type: Contact input or NPN open-collector transistor
- Circuit Insulation: Optocoupler isolation
- Input Action Display: LED lights up when input is ON
Output Specifications
- Output Type: Transistor output
- Number of Outputs: 64
- External Power: DC5~30V
- Circuit Insulation: Optocoupler isolation
- Action Display: LED lights up when optocoupler is driven
- Maximum Load:
- Resistive Load: 0.5A/point, 0.8A/4 points, 1.6A/8 points (0.3A/point for Y000, Y001)
- Inductive Load: 12W/DC24V (7.2W/DC24V for Y000, Y001)
- Lamp Load: 1.5W/DC24V (0.9W/DC24V for Y000, Y001)
- Leakage Current: 1mA/AC100V, 2mA/AC200V
- Minimum Load: 0.1VA/DC30V
- Response Time:
- OFF -> ON: 0.2ms or less (15μS for Y000, Y001)
- ON -> OFF: 0.20ms or less (30μS for Y000, Y001)
Power Specifications
- Power Type: AC power/DC input type
- Rated Voltage: AC100~240V
- Voltage Allowance Range: AC85~264V
- Rated Frequency: 50/60Hz
- Allowable Momentary Power Outage:
- Momentary power outages within 10ms can continue operation.
- For systems with AC200V power, adjustments can be made between 10~100ms via user program.
- Power Fuse: 250V 5A, 5Ф x 20mm
- Power Consumption: 100VA
- Inrush Current:
- Maximum 40A, 5ms or less (AC100V)
- Maximum 60A, 5ms or less (AC200V)
- Sensor Power (without expansion module): DC24V, 460mA or less
Supplier Information
- Company: Melink Automation
- Products: Specializes in wholesale sales of Mitsubishi PLC modules and related products, offering competitive prices and expert services.
The Mitsubishi PLC FX2N-128MT-001 is designed to provide robust and flexible control solutions for a variety of industrial applications. For purchasing or more information, please reach out to Melink Automation.
