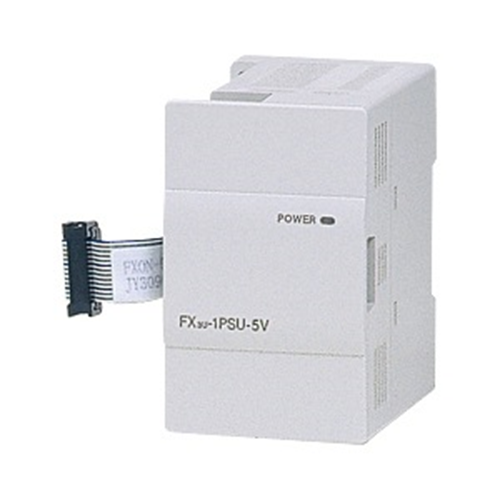

Mitsubishi PLC FX3U-1PSU-5V Extension Power Supply Module
Product Overview
The Mitsubishi FX3U-1PSU-5V extension power supply module is designed specifically for the FX3G and FX3U series PLCs. The FX3U-1PSU-5V provides additional power support when the internal power capacity of the PLC system is insufficient, ensuring stable system operation.
Applicability
- FX3G Series: The system can only connect one FX3U-1PSU-5V module.
- FX3U Series: The system can connect up to two FX3U-1PSU-5V modules.
Technical Specifications
- Input Voltage: 100-240V AC
- Output Voltage: 5V DC
- Output Current: 1A
- Power Consumption: 15W
- Frequency: 50/60Hz
- Dimensions: 90mm (H) x 40mm (W) x 86mm (D)
- Weight: 0.2 kg
- Operating Temperature: 0 to 55°C
- Storage Temperature: -25 to 75°C
- Humidity: 5% to 95% RH (non-condensing)
- Certifications: CE, UL, cUL
Additional Power Specifications
- Allowable Voltage Range: AC 85V~264V
- Permissible Momentary Power Failure Time:
- AC 100V: 10ms
- AC 200V: 100ms
- Inrush Current:
- Maximum 30A under 5ms/AC 100V
- Maximum 65A under 5ms/AC 200V
- Maximum 30A under 0.5ms/DC 24V
- Output Current:
Compatible Models
- FX3GC Series
- FX3UC Series
Standards Compliance
- CE (EMC)
- UL/cUL
- KC
- ABS
- DNV
- LR
- GL
- BV
- RINA
Key Features
- High Efficiency: The FX3U-1PSU-5V provides stable 5V DC output, ensuring reliable operation of equipment.
- Reliability: Built with high-quality components, the FX3U-1PSU-5V has a sturdy and durable design suitable for various industrial environments.
- Easy Installation: The FX3U-1PSU-5V has a compact design, easy to install and wire, reducing maintenance time.
- Safety Standards: The FX3U-1PSU-5V complies with multiple international standards, ensuring safe usage.
Application Scenarios
- Industrial Automation: Used for power supply in PLCs within factory automation systems, ensuring normal operation of equipment.
- Process Control: Suitable for systems monitoring and controlling industrial processes, providing stable power support.
- Building Automation: Integrated with building management systems for efficient operation and energy management.
- OEM Equipment: Provides reliable power supply for custom automation solutions and equipment.
Manufacturer Information
Mitsubishi Electric Corporation
- Mitsubishi Electric is a global leader in electrical and electronic equipment manufacturing, offering comprehensive solutions for residential, commercial, and industrial use. Known for their innovative technology and high-quality products, Mitsubishi Electric is dedicated to providing comprehensive solutions for automation and control systems.
Summary
The Mitsubishi FX3U-1PSU-5V extension power supply module is a high-efficiency power solution designed for the FX3G and FX3U series PLCs. Its compact design, high efficiency, and reliability make it an ideal choice for factory automation, process control, and building automation systems. The FX3U-1PSU-5V module is easy to install and complies with international safety standards, ensuring stable performance in various industrial applications.
