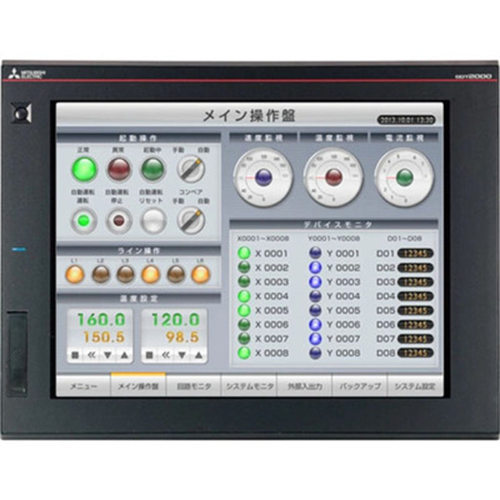

Mitsubishi HMI GT2715-XTBD-040
Brand: Mitsubishi Electric
Product Name: Advanced Graphic Operation Programmable Terminal (GOT)
Model: GT2715-XTBD-040
Overview
The Mitsubishi GT2715-XTBD-040 is a cutting-edge 15-inch Advanced Graphic Operation Programmable Terminal (GOT) designed to meet the needs of modern industrial automation. This high-performance HMI from the GOT2000 GT27 series features a stunning 1024 x 768 pixel (XGA) TFT display with 65,536 colors, ensuring that the Mitsubishi GT2715-XTBD-040 provides exceptional visual clarity and vibrancy for detailed monitoring and control tasks. The GT2715-XTBD-040 is built for robustness and versatility, making it an ideal choice for complex industrial environments.
Technical Specifications
- Display Size: 15 inches
- Resolution: 1024 x 768 pixels (XGA)
- Color Depth: 65,536 colors (65k)
- Backlight: LED
- Touchscreen Type: Analog resistive film digitizer
- Frame Color: Black
- Memory Capacity:
- Connectivity:
- 2 x USB Type A (host) connectors
- USB mini-B (device) connector
- 9-pin D-Sub male connector (RS-232)
- 9-pin D-Sub female connector (RS-422/RS-485)
- RJ45 port (Ethernet)
- Communication Protocols:
- RS-232
- RS-422
- RS-485
- Ethernet
- Mounting Type: Flush
- Degree of Protection: IP67
- Dimensions:
- Width: 397 mm (15.63 inches)
- Height: 300 mm (11.81 inches)
- Depth: 60 mm (2.36 inches)
- Cut-Out Dimensions:
- Height: 228 mm (8.98 inches)
- Width: 302 mm (11.89 inches)
- Operating Temperature: 0°C to +55°C (32°F to +131°F)
- Storage Temperature: -20°C to +60°C (-4°F to +140°F)
- Humidity: 10% to 90% (non-condensing)
- Power Consumption: 25 W
Features and Benefits
- High-Performance Display: The GT2715-XTBD-040 features a 15-inch TFT display with a resolution of 1024 x 768 pixels, delivering clear and vibrant visuals for efficient monitoring and control.
- Advanced Connectivity: Equipped with multiple communication options including USB, RS-232, RS-422/RS-485, and Ethernet, the GT2715-XTBD-040 offers flexibility in integration with various systems.
- Durable and Reliable: With an IP67 rating, the GT2715-XTBD-040 is designed to withstand harsh environments, providing protection against dust and water ingress.
- Versatile Functionality: The GT2715-XTBD-040 supports multi-touch gestures and multimedia functions, including video and RGB capabilities, enhancing user interaction and display options.
- Expandable Storage: Includes an SD card slot for additional memory, making the GT2715-XTBD-040 adaptable to varying data storage needs.
- Robust Design: Built for long-lasting performance with a durability rating of 60,000 hours, the GT2715-XTBD-040 ensures reliable operation in demanding conditions.
The Mitsubishi GT2715-XTBD-040 is designed to provide high-quality performance and flexibility, making it a valuable asset for effective industrial process management and control. Whether used in complex applications or for standard operations, the GT2715-XTBD-040 meets diverse industrial automation needs with exceptional reliability.
