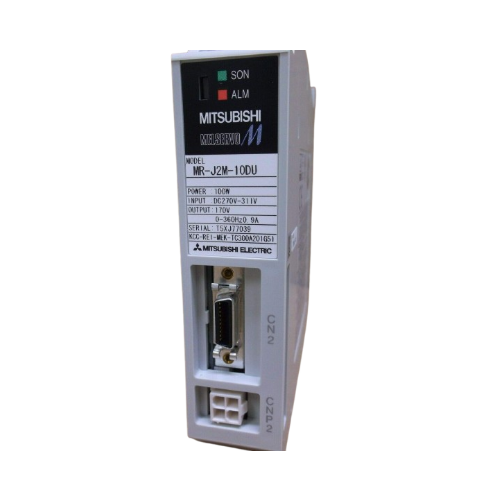

Mitsubishi Servo Drive MR-J2M-10DU
The Mitsubishi MR-J2M-10DU is a multi-axis servo amplifier drive unit from Mitsubishi's MR-J2M series, designed to deliver high-precision control in advanced industrial automation environments. With a rated output of 0.1 kW, the MR-J2M-10DU enables efficient management of servo motors for various tasks requiring accurate power load control, remote synchronous transmission, and precise mechanical displacement tracking.
Key Specifications of MR-J2M-10DU
- Brand: Mitsubishi
- Model: MR-J2M-10DU
- Type: Multi-axis servo amplifier drive unit
- Rated Output: 0.1 kW
- Encoder Resolution: 131072 pulses per revolution (17-bit)
Features of MR-J2M-10DU
- Power Load Management: The MR-J2M-10DU enables precise control over a power load with minimal power command signals, perfect for applications like rudder and gun control.
- Remote Synchronous Transmission: The MR-J2M-10DU allows input shaft control of a remotely located output shaft, eliminating the need for direct mechanical connections.
- Accurate Mechanical Displacement: It ensures accurate tracking of electrical signals for mechanical displacement in applications such as recording and other precision tasks.
Motor Series (Related to MR-J2M-10DU)
- Rated Output Power: 5.0 kW
- Rated Speed: 2000 rpm
- Brake: Optional brake system
- Shaft End: Standard (straight)
- Power Supply: 400V
- Protection Level: IP65 (IP67 available for enhanced protection)
High-Resolution Encoder
The MR-J2M-10DU is equipped with a high-resolution encoder offering 131072p/rev (17-bit resolution), ensuring enhanced performance and stability, especially at low speeds.
Application of MR-J2M-10DU
- Transmission Systems: The MR-J2M-10DU is commonly used in systems requiring precise motion control for mechanical transmission.
- Robotics: Ideal for controlling the motion of robotic components, allowing for highly precise operations.
- X-Y Working Platforms: It excels in controlling movements in multi-axis platforms, ensuring smooth and accurate positioning.
Additional Specifications (Related Motors for MR-J2M-10DU)
- Series: Super low inertia, medium power motors
- Rated Output: 1.5 kW
- Rated Speed: 3000 rpm
- Brake: Not included
- Shaft End: Standard (straight)
- Protection: IP65
- Application: High-frequency transmission systems, insertion devices, assembly machinery
Summary
The Mitsubishi MR-J2M-10DU is a reliable, high-performance servo amplifier drive unit designed for multi-axis applications in industrial automation. Its high-resolution encoder, ultra-low inertia motor compatibility, and robust protection rating (IP65) make it an ideal choice for applications requiring precision and durability. The MR-J2M-10DU is designed to seamlessly integrate with existing systems, ensuring minimal disruption and maximum efficiency in critical automation tasks.
