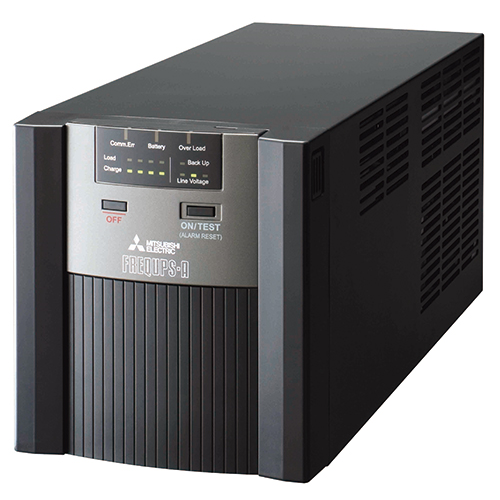

Mitsubishi UPS FW-A10H-0.7K Basic Information
- Model Number: FW-A10H-0.7K
- Overview: The FW-A10H-0.7K is a standard model UPS designed for power protection of servers and factory automation (FA) equipment.
Features:
AVR (Automatic Voltage Regulation) Function
- The FW-A10H-0.7K provides voltage correction with AVR functionality, accommodating a wide range of input voltages from AC 81V to 124V. This minimizes unnecessary battery usage and prevents battery depletion during backup by reducing the frequency of power switchovers.
- Note: For environments with continuous AVR operation, a constant inverter power supply method is recommended.
Noise Protection
- The FW-A10H-0.7K includes built-in surge protection circuits, lightning protection, and noise filters. These features prevent surges and noise from the input power source from affecting your backup equipment, ensuring reliable protection.
Wired Remote Control
- The UPS features a wired remote control unit connected to the main unit via a 1.5-meter cable. This allows easy operation and monitoring of the UPS, even if it is installed in hard-to-reach locations like under a desk or in a rack.
- LED Indicators: The remote control unit uses LEDs to clearly display the UPS operation status.
External Interfaces
- The FW-A10H-0.7K offers RS-232C and USB connectors for shutdown and configuration purposes, giving users the flexibility to choose between these interfaces.
- Note: Simultaneous use of both interfaces is not possible.
The FW-A10H-0.7K is a versatile and reliable UPS solution designed to protect servers and FA equipment, featuring advanced voltage regulation, noise protection, and convenient remote control options.
