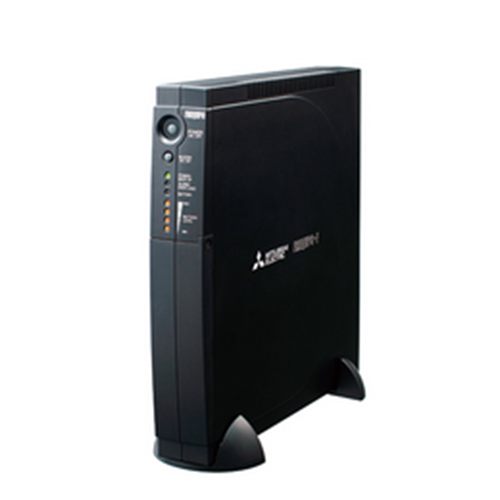

Mitsubishi UPS FW-J10-0.5K Basic Information
-
Model Number: FW-J10-0.5K
-
Overview: The FW-J10-0.5K is an upper-basic model UPS specifically designed to provide optimal backup for devices with PFC (Power Factor Correction) power supplies. The FW-J10-0.5K is ideal for ensuring reliable power protection in various environments.
-
Standards: UL certified
Features:
Sine Wave Output for PFC Power Supplies
The FW-J10-0.5K delivers sine wave output, making it suitable for devices equipped with PFC power supplies. Many modern devices, such as desktop computers, servers, and LCD monitors, use PFC power supplies designed for sine wave input. Thus, the FW-J10-0.5K ensures proper backup for these devices, as PFC power supplies require sine wave output for optimal performance.
- PFC Power Supply: Incorporates a Power Factor Correction circuit to enhance power factor and minimize noise (harmonic currents).
Examples of PFC Power Supply Devices:
- Desktop computers
- Servers
- Surveillance cameras and DVRs
- LCD monitors
Advanced Functionality Settings
With the UPS configuration software "UPSSET," the FW-J10-0.5K allows users to adjust and control the following features:
-
Computer Shutdown via UPS Power Switch OFF:
- The FW-J10-0.5K can automatically shut down the OS when the UPS power switch is turned off. This feature, when used with the "UPS Shutdown Function," provides a complete shutdown sequence: power switch OFF → OS shutdown → UPS shutdown (enabled/disabled).
-
Shutdown Time Setting:
- Set the delay time (0–9999 seconds) from when the UPS shutdown signal is received until the UPS stops.
-
Reboot Function on Power Restoration:
- The FW-J10-0.5K can automatically reboot the computer if power is restored before the OS shutdown is completed. This function has a configurable delay time (0–9999 seconds).
-
Inrush Current Avoidance Function:
- To prevent unnecessary switching to backup power during startup or power restoration, the FW-J10-0.5K can delay this switch for a set time (0–30 seconds) if input voltage drops.
-
Self-Test Cycle:
- The FW-J10-0.5K includes a self-test function to check its operational status and backup performance. This test can be enabled/disabled and set to run at intervals of 0–99 days.
Commercial Power Startup Method
- The FW-J10-0.5K ensures that even if the battery is degraded or there has been a prolonged outage, it can still supply power to the load as long as commercial power is available.
Installation Compatibility
- Designed with the same shape and size as the FW-F series, the FW-J10-0.5K is compatible with existing installations and suitable for embedded applications.
The FW-J10-0.5K offers advanced backup capabilities with its sine wave output and extensive functionality, making it a reliable choice for protecting devices with PFC power supplies.
