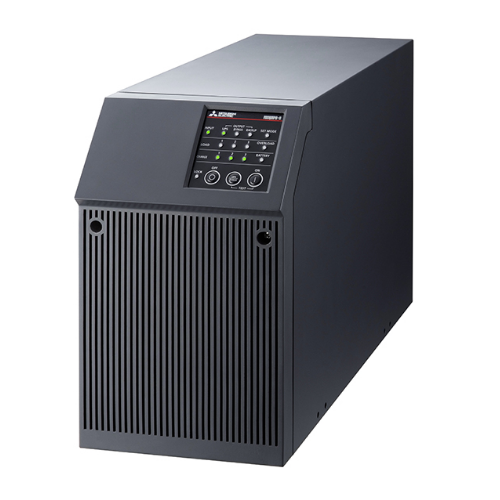

Mitsubishi UPS FW-S10-0.7K
Overview: The Mitsubishi Electric FW-S10-0.7K is a high-quality Uninterruptible Power Supply (UPS) designed to cater to a wide range of applications from office automation (OA) to factory automation (FA). The FW-S10-0.7K model ensures reliable power protection and uninterrupted operation in diverse settings, providing a robust solution for critical power needs.
Key Features:
-
High-Quality Power Management:
- Wide Input Voltage Range: The FW-S10-0.7K supports a broad input voltage range of AC85–144V, reducing backup operations caused by voltage fluctuations and minimizing unnecessary battery power consumption.
- User-Defined Output: The FW-S10-0.7K provides output voltage (100–120V) and frequency (50/60Hz) unaffected by input power voltage or frequency. It also gradually ramps up the output voltage at startup to limit inrush current.
- Clean Output: The FW-S10-0.7K converts distorted voltage waveforms, including harmonics, surges, and noise, into clean sine waves.
-
Commercial and Battery Start-Up:
- Commercial Start-Up: The FW-S10-0.7K allows operation even when the battery is degraded or has low capacity, as long as commercial power is available.
- Battery Start-Up: The FW-S10-0.7K provides power during outages using the battery, making it suitable for emergency power during blackouts.
-
Comprehensive External Signal Management:
- External Signal Outputs: The FW-S10-0.7K outputs signals regarding UPS operation status (e.g., backup, bypass, alarms) and battery capacity for effective monitoring and management.
- Voltage Sag Alerts: The FW-S10-0.7K is equipped with alarms and history functions for sags, with settings and readings possible through UPS configuration software.
- Remote Operation: The FW-S10-0.7K allows UPS status changes and breaker interactions through external signals and remote switches.
-
Industry-First Breaker Interlock Function:
- Breaker Integration: The FW-S10-0.7K connects to the breaker’s alarm switch (AL) and auxiliary switch (AX) to enable UPS operation based on breaker status, such as continuing power supply during outages or stopping UPS when the breaker is off.
-
Additional Functionalities:
- Remote ON/OFF: The FW-S10-0.7K allows remote control for starting and stopping the UPS.
- Bypass Switching: The FW-S10-0.7K enables switching to bypass mode via external signals or control panel buttons.
- UPS Shutdown Function: The FW-S10-0.7K allows UPS shutdown during backup operation through input signals.
- Emergency Stop Function: The FW-S10-0.7K incorporates an emergency stop function activated by external signals, ideal for integration into SEMI-compliant equipment.
The Mitsubishi Electric FW-S10-0.7K UPS is designed to provide reliable power protection and advanced features, making it suitable for a wide range of applications where power stability and management are critical.
